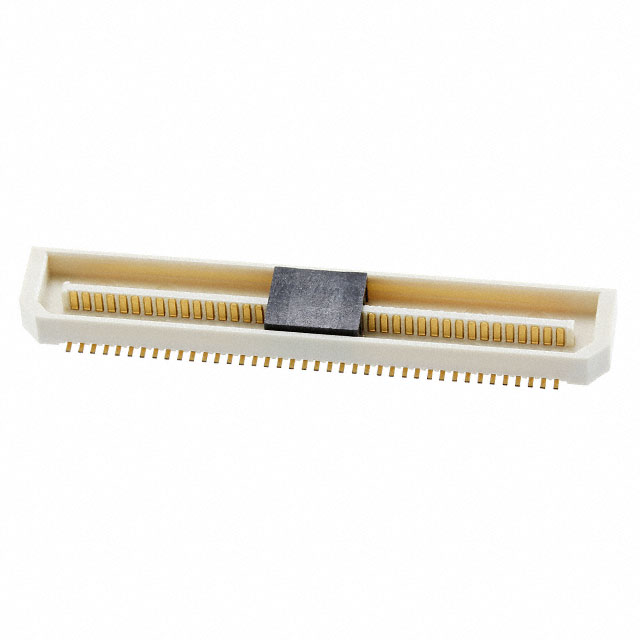

AXN480C330S

Obsolete

Panasonic Electric Works

CONN HDR 80POS SMD GOLD

Search across all available documentation for this part.

Obsolete

Panasonic Electric Works

CONN HDR 80POS SMD GOLD

Technical Specifications

Parameters and characteristics for this part

Specification	AXN480C330S

Connector Type	Header, Outer Shroud Contacts
Contact Finish	Gold
Features	Board Guide
Height Above Board [z]	2.72 mm
Height Above Board [z]	0.107 in
Mated Stacking Heights	6 mm, 3.5 mm, 3 mm
Mounting Type	Surface Mount
Number of Positions	80
Number of Rows	2
Pitch [x]	0.8 mm
Pitch [x]	0.031 in

Part	Number of Positions	Pitch [x]	Pitch [x]	Features	Height Above Board	Height Above Board	Contact Finish	Connector Type	Mounting Type	Number of Rows	Mated Stacking Heights	Height Above Board [z]	Height Above Board [z]
Panasonic Electric Works AXN480530P	80	0.8 mm	0.031 in	Board Guide	4.72 mm	0.186 "	Gold	Header Outer Shroud Contacts	Surface Mount	2	5 mm 5.5 mm 8 mm
Panasonic Electric Works AXN480430S	80	0.8 mm	0.031 in	Board Guide	3.72 mm	0.147 in	Gold	Header Outer Shroud Contacts	Surface Mount	2	4 mm 4.5 mm 7 mm
Panasonic Electric Works AXN480C430S	80	0.8 mm	0.031 in	Board Guide	3.7 mm	0.146 in	Gold	Header Outer Shroud Contacts	Surface Mount	2	4 mm 4.5 mm 7 mm
Panasonic Electric Works AXN480430P	80	0.8 mm	0.031 in	Board Guide	3.72 mm	0.147 in	Gold	Header Outer Shroud Contacts	Surface Mount	2	4 mm 4.5 mm 7 mm
Panasonic Electric Works AXN480C530S	80	0.8 mm	0.031 in	Board Guide	4.72 mm	0.186 "	Gold	Header Outer Shroud Contacts	Surface Mount	2	5 mm 5.5 mm 8 mm
Panasonic Electric Works AXN480C330S	80	0.8 mm	0.031 in	Board Guide			Gold	Header Outer Shroud Contacts	Surface Mount	2	3 mm 3.5 mm 6 mm	2.72 mm	0.107 in
