EL03MS001

Active

WITHWAVE CO LTD

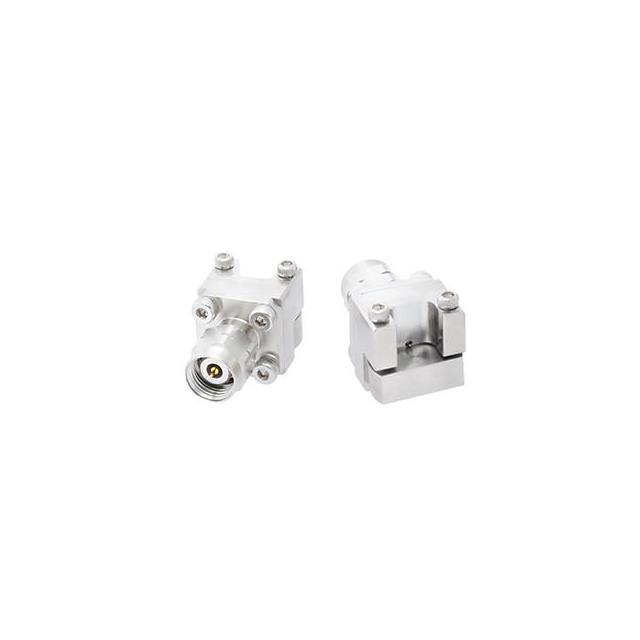

END LAUNCH 2.92 MM CONNECTOR(DC

Search across all available documentation for this part.

Active

WITHWAVE CO LTD

END LAUNCH 2.92 MM CONNECTOR(DC

Technical Specifications

Parameters and characteristics commom to parts in this series

END LAUNCH 2.92 MM CONNECTOR(DC

Part	Mounting Type	Number of Ports	Frequency - Max [Max]	Shield Termination	Center Contact Plating	Connector Type	Center Contact Material	Impedance	Body Material	Contact Termination	Connector Style
WITHWAVE CO LTD EL03MS002	Board Edge, End Launch	1	40 GHz	Screw	Gold	Male Pin, Plug	Beryllium Copper	50 Ohms	Stainless Steel	Compression	2.92 mm
WITHWAVE CO LTD EL03MS001	Board Edge, End Launch	1	40 GHz	Screw	Gold	Male Pin, Plug	Beryllium Copper	50 Ohms	Stainless Steel	Compression	2.92 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

2.92mm Connector Plug, Male Pin 50 Ohms Board Edge, End Launch Compression
