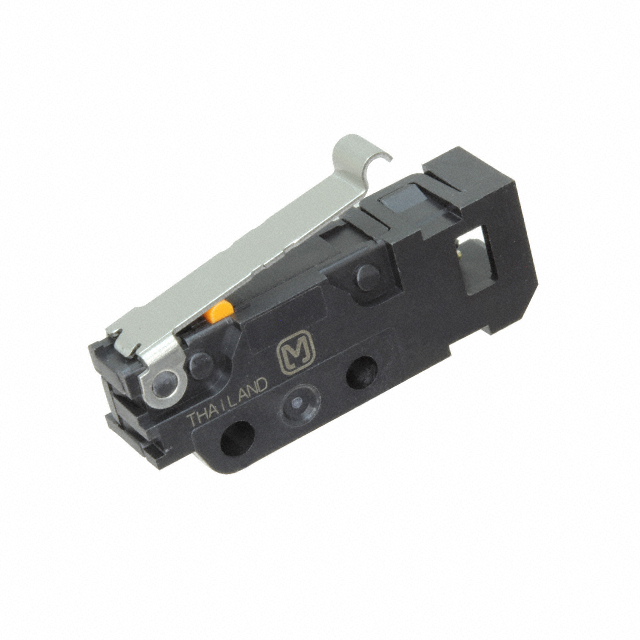

AV634564

Active

Panasonic Electric Works

SWITCH SNAP ACT SPST-NO 0.1A 30V

Search across all available documentation for this part.

Active

Panasonic Electric Works

SWITCH SNAP ACT SPST-NO 0.1A 30V

Technical Specifications

Parameters and characteristics for this part

Part	Mechanical Life	Release Force	Ingress Protection	Operating Force	Mounting Type	Voltage Rating - DC	Circuit	Pretravel	Pretravel	Operating Position	Operating Position	Operating Temperature [Min]	Operating Temperature [Max]	Termination Style	Current Rating (Amps)	Differential Travel	Differential Travel	Switch Function	Overtravel	Overtravel	Actuator Type	Electrical Life
Panasonic Electric Works AV6342643
Panasonic Electric Works AV634512643
Panasonic Electric Works AV63451264	500000 Cycles	10 gf	IP40	102 gf	Chassis Mount	30 V	SPST-NO	1.4 mm	0.055 in	0.445 in	11.3 mm	-25 °C	85 °C	Connector	100 mA	0.6 mm	0.025 in	Off-Mom	0.026 in	0.7 mm	Lever Simulated Roller	200000 Cycles
Panasonic Electric Works AV634264	500000 Cycles	2.039 gf	IP40	20 gf	Chassis Mount	30 V	SPST-NO			0.48 in	12.2 mm	-25 °C	85 °C	Connector	100 mA	0.8 mm	0.031 "	Off-Mom	0.047 "	1.2 mm	Lever Simulated Roller	200000 Cycles
Panasonic Electric Works AV634564	500000 Cycles	6.118 gf	IP40	51 gf	Chassis Mount	30 V	SPST-NO			0.48 in	12.2 mm	-25 °C	85 °C	Connector	100 mA	0.8 mm	0.031 "	Off-Mom	0.047 "	1.2 mm	Lever Simulated Roller	200000 Cycles

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Switch SPST-NO Chassis Mount
