EP2AGX45DF29C6

Obsolete

Altera

IC FPGA 364 I/O 780FBGA

Search across all available documentation for this part.

Obsolete

Altera

IC FPGA 364 I/O 780FBGA

Technical Specifications

Parameters and characteristics for this part

Specification	EP2AGX45DF29C6

Mounting Type	Surface Mount
Number of I/O	364
Number of LABs/CLBs	1805
Number of Logic Elements/Cells	42959
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	0 °C

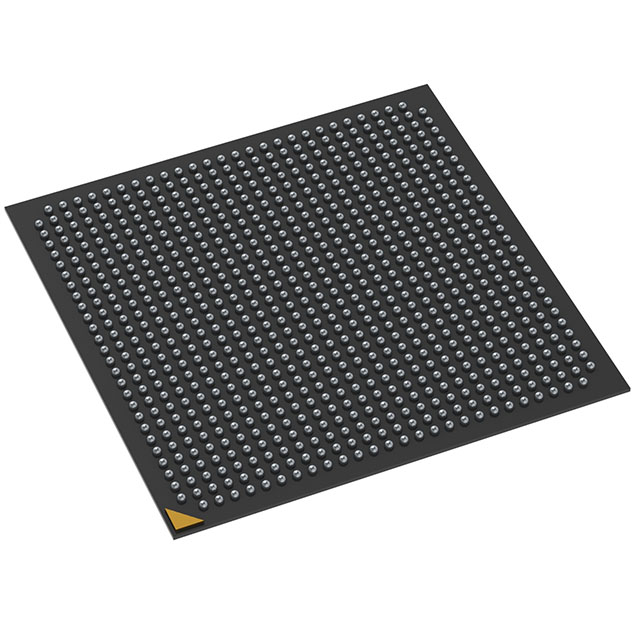

Package / Case	FCBGA, 780-BBGA
Supplier Device Package	780-FBGA (29x29)
Total RAM Bits	3517440 bits
Voltage - Supply [Max]	0.93 V
Voltage - Supply [Min]	0.87 V

Part	Voltage - Supply [Min]	Voltage - Supply [Max]	Mounting Type	Total RAM Bits	Package / Case	Number of Logic Elements/Cells	Number of LABs/CLBs	Supplier Device Package	Operating Temperature [Max]	Operating Temperature [Min]	Number of I/O
Altera EP2AGX45DF25I3G	0.87 V	0.93 V	Surface Mount	3517440 bits	572-BGA FCBGA	42959	1805	572-FBGA FC (25x25)	100 °C	-40 C	252
Altera EP2AGX45DF25C4	0.87 V	0.93 V	Surface Mount	3517440 bits	572-BGA FCBGA	42959	1805	572-FBGA FC (25x25)	85 °C	0 °C	252
Altera EP2AGX45CU17I3N	0.87 V	0.93 V	Surface Mount	3517440 bits	358-LFBGA FCBGA	42959	1805	358-UBGA FCBGA (17x17)	100 °C	-40 C	156
Altera EP2AGX45CU17I3G	0.87 V	0.93 V	Surface Mount	3517440 bits	358-LFBGA FCBGA	42959	1805	358-UBGA FCBGA (17x17)	100 °C	-40 C	156
Altera EP2AGX45CU17C6G	0.87 V	0.93 V	Surface Mount	3517440 bits	358-LFBGA FCBGA	42959	1805	358-UBGA FCBGA (17x17)	85 °C	0 °C	156
Altera EP2AGX45DF29C6	0.87 V	0.93 V	Surface Mount	3517440 bits	780-BBGA FCBGA	42959	1805	780-FBGA (29x29)	85 °C	0 °C	364

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Arria II GX Field Programmable Gate Array (FPGA) IC 364 3517440 42959 780-BBGA, FCBGA
