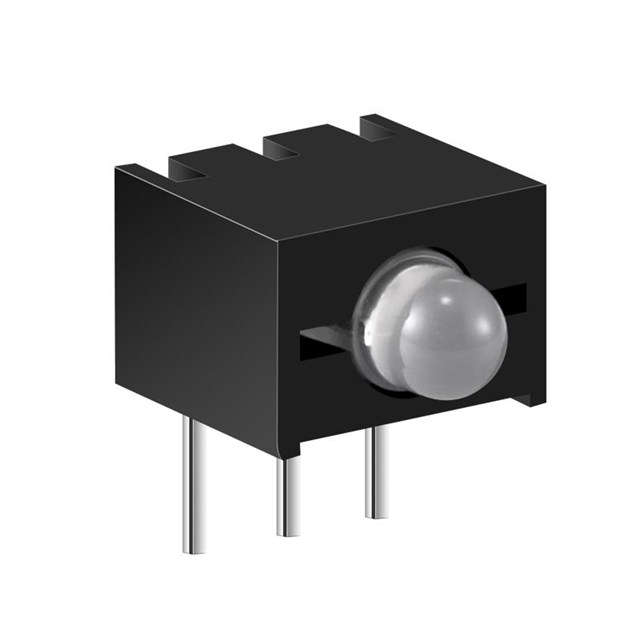

XNN1LUGR86M
ActiveSunLED
LED CBI 3MM GRN/RED RA
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
XNN1LUGR86M
ActiveSunLED
LED CBI 3MM GRN/RED RA
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | XNN1LUGR86M |
|---|---|
| Color | Red, Green |
| Configuration | Single |
| Current | 160 mA, 140 mA |
| Lens Size | 3 mm |
| Lens Size | T-1 |
| Lens Style | Round with Domed Top |
| Lens Type | Diffused, White |
| Millicandela Rating [custom] | 23 mcd |
| Millicandela Rating [custom] | 29 mcd |
| Mounting Type | Through Hole, Right Angle |
| Viewing Angle | 60 ° |
| Voltage Rating | 2.2 V, 2 V |
| Wavelength - Peak [custom] | 565 nm, 627 nm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 1.02 | |
| 10 | $ 0.66 | |||
| 100 | $ 0.43 | |||
| 1000 | $ 0.34 | |||
| 2000 | $ 0.32 | |||
| 5000 | $ 0.31 | |||
| 10000 | $ 0.30 | |||
| 25000 | $ 0.30 | |||
Description
General part information
XNN1LUGR86 Series
LED Circuit Board Indicator LED Circuit Board Indicator Single Green, Red Diffused, White 2.2V Green, 2V Red 140mA Green, 160mA Red Round with Domed Top 3mm, T-1 Through Hole, Right Angle
