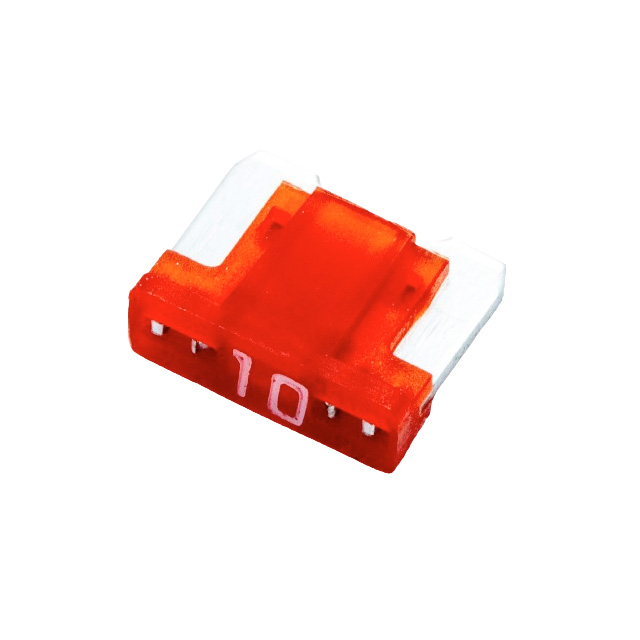

ANS-10A

Active

OptiFuse

FUSE AUTO 10A 32VDC BLADE MINI

Search across all available documentation for this part.

Active

OptiFuse

FUSE AUTO 10A 32VDC BLADE MINI

Technical Specifications

Parameters and characteristics for this part

Specification	ANS-10A

Approval Agency	ISO, SAE
Breaking Capacity @ Rated Voltage	1 kA
Color	Red
Current Rating (Amps)	10 A
Fuse Type	Automotive
Mounting Type	Requires Holder
Package / Case	Blade, Miniature (Low Profile)
Response Time	Fast Blow
Size / Dimension [x]	0.433 in
Size / Dimension [x]	11 mm
Size / Dimension [y]	3.91 mm
Size / Dimension [y]	0.154 in
Size / Dimension [z]	8.75 mm
Size / Dimension [z]	0.344 in
Voltage Rating - DC	32 V

FUSE AUTO 10A 32VDC BLADE MINI

Part	Response Time	Current Rating (Amps)	Voltage Rating - DC	Approval Agency	Color	Mounting Type	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Fuse Type	Breaking Capacity @ Rated Voltage	Package / Case
OptiFuse ANS-10A	Fast Blow	10 A	32 V	ISO, SAE	Red	Requires Holder	8.75 mm	3.91 mm	0.344 in	0.433 in	11 mm	0.154 in	Automotive	1 kA	Blade, Miniature (Low Profile)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

10 A AC 32 V DC Fuse Automotive Requires Holder Blade, Miniature (Low Profile)
