MS3116P12-10P
ActiveAmphenol Industrial Operations
MIL-26482 MS/PT/CMB PLUG
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
MS3116P12-10P
ActiveAmphenol Industrial Operations
MIL-26482 MS/PT/CMB PLUG
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | MS3116P12-10P | MS3116P12 Series |
|---|---|---|
| Applications | Communication Systems, Industrial, Instrumentation, Aerospace, Mass Transit, Military | Communication Systems, Industrial, Instrumentation, Aerospace, Mass Transit, Military |
| Color | Olive Drab | Olive Drab |
| Connector Type | Plug, Male Pins | Female Sockets, Plug, Male Pins |
| Contact Finish - Mating | Gold | Gold |
| Contact Material | Copper Alloy | Copper Alloy |
| Current Rating (Amps) | 7.5 A | 7.5 A |
| Fastening Type | Bayonet Lock | Bayonet Lock |
| Features | Strain Relief, Backshell, Potted | Strain Relief, Backshell, Potted |
| Grade | Military | Military |
| Ingress Protection | Environment Resistant | Environment Resistant |
| Insert Material | Neoprene | Neoprene |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Number of Positions | 10 | 10 |
| Operating Temperature [Max] | 125 °C | 125 °C |
| Operating Temperature [Min] | -55 °C | -55 °C |
| Orientation | N | N |
| Primary Material | Metal | Metal |
| Qualification | MIL-DTL-26482 Series I | MIL-DTL-26482 Series I |
| Shell Finish | Olive Drab Chromate over Cadmium | Olive Drab Chromate over Cadmium |
| Shell Material | Aluminum Alloy | Aluminum Alloy |
| Shielding | Unshielded | Unshielded |
| Voltage Rating | 600 VAC | 600 VAC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 59.12 | |
| 10 | $ 54.25 | |||
| 25 | $ 52.16 | |||
| 50 | $ 50.42 | |||
| 100 | $ 47.64 | |||
MS3116P12 Series
MIL-26482 MS/PT/CMB PLUG
| Part | Grade | Connector Type | Shell Material | Insert Material | Number of Positions | Voltage Rating | Current Rating (Amps) | Ingress Protection | Operating Temperature [Min] | Operating Temperature [Max] | Applications | Fastening Type | Primary Material | Shell Finish | Contact Material | Orientation | Qualification | Shielding | Contact Finish - Mating | Mounting Type | Features | Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Amphenol Industrial Operations MS3116P12-10S | Military | Female Sockets, Plug | Aluminum Alloy | Neoprene | 10 | 600 VAC | 7.5 A | Environment Resistant | -55 °C | 125 °C | Aerospace, Communication Systems, Industrial, Instrumentation, Mass Transit, Military | Bayonet Lock | Metal | Olive Drab Chromate over Cadmium | Copper Alloy | N | MIL-DTL-26482 Series I | Unshielded | Gold | Free Hanging (In-Line) | Backshell, Potted, Strain Relief | Olive Drab |
Amphenol Industrial Operations MS3116P12-10P | Military | Male Pins, Plug | Aluminum Alloy | Neoprene | 10 | 600 VAC | 7.5 A | Environment Resistant | -55 °C | 125 °C | Aerospace, Communication Systems, Industrial, Instrumentation, Mass Transit, Military | Bayonet Lock | Metal | Olive Drab Chromate over Cadmium | Copper Alloy | N | MIL-DTL-26482 Series I | Unshielded | Gold | Free Hanging (In-Line) | Backshell, Potted, Strain Relief | Olive Drab |
Description
General part information
MS3116P12 Series

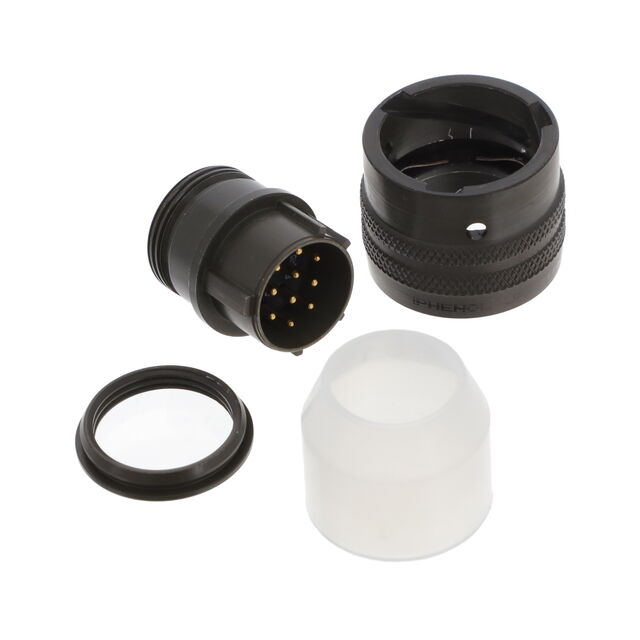

10 Position Circular Connector Plug, Male Pins Solder Cup
