CCL-LX45SRT
ActiveLumex Opto/Components Inc.

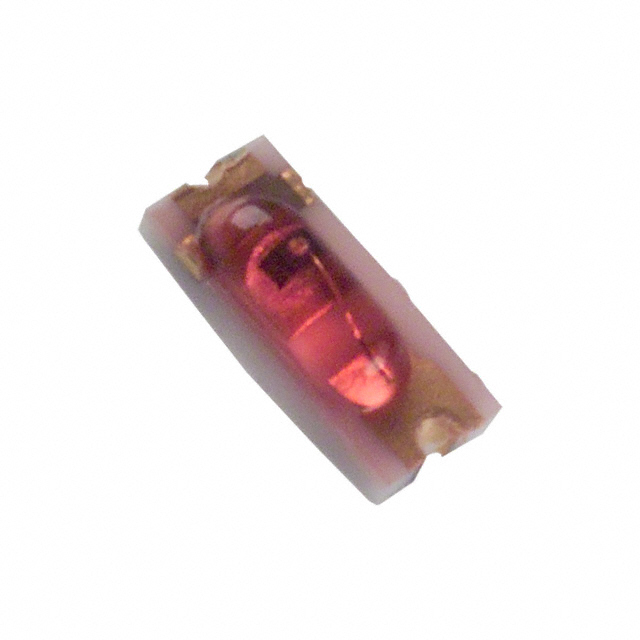

LED RED CLEAR 660NM SMD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
CCL-LX45SRT
ActiveLumex Opto/Components Inc.
LED RED CLEAR 660NM SMD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | CCL-LX45SRT | CCL-LX45 Series |
|---|---|---|
| Color | Red | Yellow, Red, Green |
| Configuration | Standard | Standard |
| Current - Test | 20 mA | 20 mA |
| Height (Max) [Max] | 1.2 mm | 1.2 mm |
| Lens Color | Red | Yellow, Red, Green |
| Lens Style | Oval with Domed Top | Oval with Domed Top |
| Lens Transparency | Clear | Clear |
| Millicandela Rating | 8 mcd | 7 - 8 mcd |
| Mounting Type | Surface Mount | Surface Mount |
| Package / Case | 2-SMD, No Lead | 2-SMD, No Lead |
| Size / Dimension [x] | 3.2 mm | 3.2 mm |
| Size / Dimension [y] | 0.05 " | 0.05 " |
| Supplier Device Package | SMD | SMD |
| Viewing Angle | 180 ° | 180 ° |
| Voltage - Forward (Vf) (Typ) | 1.8 V | 1.8 - 2.3 V |
| Wavelength - Peak | 660 nm | 565 - 660 nm |
CCL-LX45 Series
LED YELLOW CLEAR SMD
| Part | Mounting Type | Lens Color | Current - Test | Configuration | Wavelength - Peak | Supplier Device Package | Color | Millicandela Rating | Size / Dimension [x] | Size / Dimension [y] | Voltage - Forward (Vf) (Typ) | Package / Case | Height (Max) [Max] | Viewing Angle | Lens Style | Lens Transparency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Lumex Opto/Components Inc. CCL-LX45YT | Surface Mount | Yellow | 20 mA | Standard | 585 nm | SMD | Yellow | 7 mcd | 3.2 mm | 0.05 " | 2.3 V | 2-SMD, No Lead | 1.2 mm | 180 ° | Oval with Domed Top | Clear |
Lumex Opto/Components Inc. CCL-LX45SRT | Surface Mount | Red | 20 mA | Standard | 660 nm | SMD | Red | 8 mcd | 3.2 mm | 0.05 " | 1.8 V | 2-SMD, No Lead | 1.2 mm | 180 ° | Oval with Domed Top | Clear |
Lumex Opto/Components Inc. CCL-LX45GT | Surface Mount | Green | 20 mA | Standard | 565 nm | SMD | Green | 7 mcd | 3.2 mm | 0.05 " | 2.2 V | 2-SMD, No Lead | 1.2 mm | 180 ° | Oval with Domed Top | Clear |
Lumex Opto/Components Inc. CCL-LX45IT | Surface Mount | Red | 20 mA | Standard | 635 nm | SMD | Red | 3.2 mm | 0.05 " | 2.1 V | 2-SMD, No Lead | 1.2 mm | 180 ° | Oval with Domed Top | Clear |
