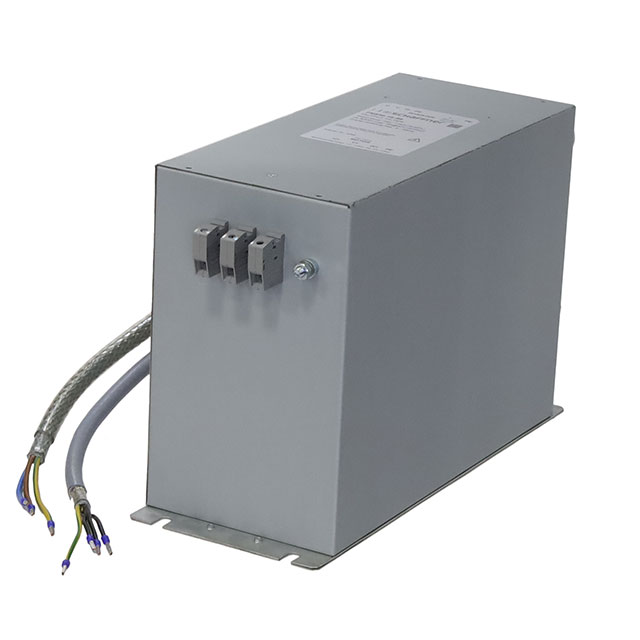

FN530-16-99

Active

TE Connectivity Raychem Cable Protection

LINE FILTER 16A CHASSIS MOUNT

Search across all available documentation for this part.

Active

TE Connectivity Raychem Cable Protection

LINE FILTER 16A CHASSIS MOUNT

Technical Specifications

Parameters and characteristics for this part

Specification	FN530-16-99

Applications	General Purpose
Configuration	Three Stage
Current	16 A
Filter Type	Three Phase (Delta)
Mounting Type	Chassis Mount
Operating Temperature [custom]	100 °C, -25 °C
Termination Style	Wire Leads, Terminal Block
Voltage - Rated AC (Phase to Ground/Neutral)	288 V
Voltage - Rated AC (Phase to Phase)	500 V

Part	Voltage - Rated AC (Phase to Phase)	Filter Type	Mounting Type	Operating Temperature [custom]	Applications	Configuration	Termination Style	Voltage - Rated AC (Phase to Ground/Neutral)	Current
TE Connectivity Raychem Cable Protection FN530-4-99	500 V	Three Phase (Delta)	Chassis Mount	-25 °C 100 °C	General Purpose	Three Stage	Terminal Block Wire Leads	288 V	4 A
TE Connectivity Raychem Cable Protection FN530-16-99	500 V	Three Phase (Delta)	Chassis Mount	-25 °C 100 °C	General Purpose	Three Stage	Terminal Block Wire Leads	288 V	16 A

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 1417.06

General part information

Three Phase (Delta) EMC/EMI Line Filter 16 A Three Stage Terminal Block, Wire Leads
