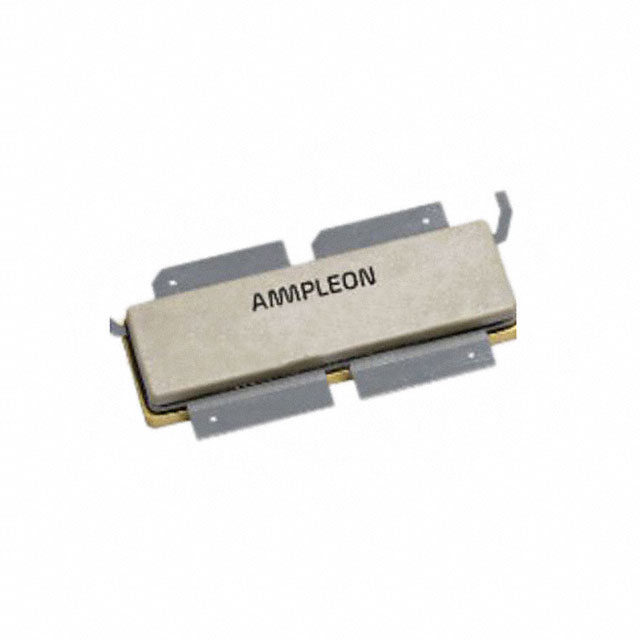

BLC10G18XS-360AVTY

Active

Ampleon USA Inc.

RF MOSFET LDMOS SOT1258-7

Search across all available documentation for this part.

Active

Ampleon USA Inc.

RF MOSFET LDMOS SOT1258-7

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	100	$ 77.70

General part information

RF Mosfet 1.805GHz ~ 1.88GHz 18dB SOT-1258-7

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Specification	BLC10G18XS-360AVTY	BLC10 Series

	-	-
Configuration	-	2 N-Channel (Dual) Common Source, Common Source, Dual
Current - Test	-	1.06 - 900 A
Current Rating (Amps)	-	1.4 - 2.8 µA
Frequency [Max]	1.88 GHz	1.492 - 2.7 GHz
Frequency [Min]	1.805 GHz	1.427 - 1452 GHz
Gain	18 dBi	13 - 19.7 dB
Mounting Type	Surface Mount	Surface Mount, Chassis Mount
Package / Case	SOT-1258-7	SOT-1258-4, SOT-1275-1, SOT-1258-7, SOT-1258-5, SOT-1271-2, SOT1275-3, SOT1258-1
Power - Output	-	60 - 750 W
Supplier Device Package	SOT-1258-7	SOT1258-4, DFM6, SOT-1258-7, SOT1258-5, SOT1271-2, SOT1275-3, SOT1258-1
Technology	-	LDMOS (Dual), Common Source
Voltage - Rated	-	65 V
Voltage - Test	-	28 - 32 V

RF MOSFET LDMOS 32V SOT1258-4

Part	Configuration	Frequency [Min]	Frequency [Max]	Voltage - Rated	Power - Output	Supplier Device Package	Mounting Type	Gain	Current Rating (Amps)	Voltage - Test	Current - Test	Package / Case
Ampleon USA Inc. BLC10G16XS-600AVTZ	2 N-Channel (Dual) Common Source	1.427 GHz	1.518 GHz	65 V	720 W	SOT1258-4	Surface Mount	17.4 dB	2.8 µA	32 V	1.9 A	SOT-1258-4
Ampleon USA Inc. BLC10G18XS-552AVTZ
Ampleon USA Inc. BLC10G18XS-550AVTY	Common Source, Dual	1.805 GHz	1.88 GHz	65 V	550 W	SOT1258-4	Surface Mount	16 dB	2.8 µA	28 V	800 mA	SOT-1258-4
Ampleon USA Inc. BLC10G22XS-301AVTYZ	2 N-Channel (Dual) Common Source	2.11 GHz	2.17 GHz	65 V	300 W	DFM6	Chassis Mount	15 dB	1.4 µA	30 V	1.1 A	SOT-1275-1
Ampleon USA Inc. BLC10G22XS-301AVTZ		2.11 GHz	2.17 GHz	65 V	350 W	DFM6	Chassis Mount	15 dB	1.4 µA			SOT-1275-1
Ampleon USA Inc. BLC10G18XS-360AVTY		1.805 GHz	1.88 GHz			SOT-1258-7	Surface Mount	18 dBi				SOT-1258-7
Ampleon USA Inc. BLC10G18XS-552AVTY	2 N-Channel (Dual) Common Source	1.805 GHz	1.88 GHz	65 V	550 W	SOT1258-4	Surface Mount	16.1 dB	2.8 µA	30 V	1.9 A	SOT-1258-4
Ampleon USA Inc. BLC10G22XS-602AVTY	2 N-Channel (Dual) Common Source	2.11 GHz	2.17 GHz	65 V	687 W	SOT1258-4	Surface Mount	15.4 dB	2.8 µA	30 V	1.2 A	SOT-1258-4
Ampleon USA Inc. BLC10G19XS-551AVYZ	2 N-Channel (Dual) Common Source			65 V	550 W	SOT1258-5	Surface Mount	15 dB	2.8 µA	30 V	370 mA	SOT-1258-5
Ampleon USA Inc. BLC10G18XS-550AVTZ	Common Source, Dual	1.805 GHz	1.88 GHz	65 V	550 W	SOT1258-4	Surface Mount	16 dB	2.8 µA	28 V	800 mA	SOT-1258-4
