194,AL

Active

Serpac

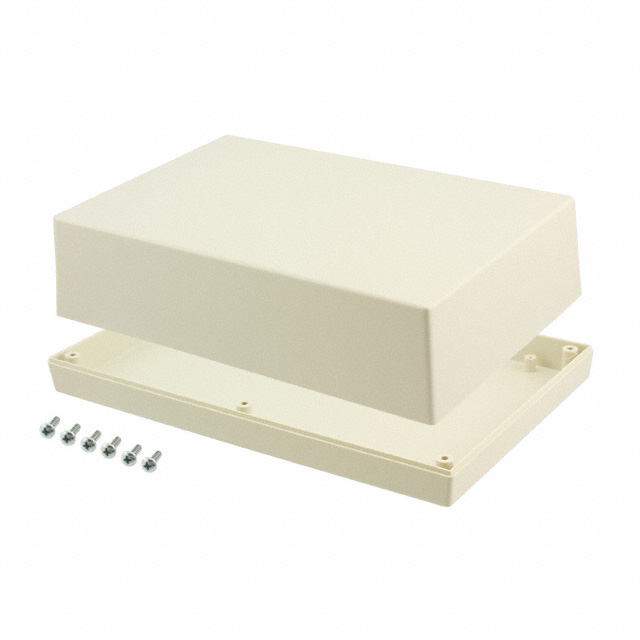

BOX ABS ALMOND 9.5"L X 6.34"W

Search across all available documentation for this part.

Active

Serpac

BOX ABS ALMOND 9.5"L X 6.34"W

Technical Specifications

Parameters and characteristics for this part

Specification	194,AL

Area (L x W)	60.2 in²
Area (L x W)	388 cm²
Color	Almond
Container Type	Box
Design	Split Sides, Hand Held
Features	PCB Supports
Height [z]	76.2 mm
Height [z]	3 in
Material	Plastic, ABS
Material Flammability Rating	UL94 HB
Ratings	IP40, NEMA 1
Size / Dimension	161.04 mm, 241.3 mm
Size / Dimension [x]	9.5 "
Size / Dimension [y]	6.34 "
Thickness	2.54 mm
Thickness	0.1 in
Weight	0.76 lb
Weight	344.73 g

Part	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension	Area (L x W)	Area (L x W)	Height [z]	Height [z]	Material	Ratings	Color	Thickness	Thickness	Weight	Weight	Design	Features	Material Flammability Rating	Container Type
Serpac 194,GY	9.5 "	6.34 "	161.04 mm 241.3 mm	60.2 in²	388 cm²	76.2 mm	3 in	Plastic ABS	IP40 NEMA 1	Gray	2.54 mm	0.1 in	0.76 lb	344.73 g	Hand Held Split Sides	PCB Supports	UL94 HB	Box
Serpac 194,BK	9.5 "	6.34 "	161.04 mm 241.3 mm	60.2 in²	388 cm²	76.2 mm	3 in	Plastic ABS	IP40 NEMA 1	Black	2.54 mm	0.1 in	0.76 lb	344.73 g	Hand Held Split Sides	PCB Supports	UL94 HB	Box
Serpac 194,AL	9.5 "	6.34 "	161.04 mm 241.3 mm	60.2 in²	388 cm²	76.2 mm	3 in	Plastic ABS	IP40 NEMA 1	Almond	2.54 mm	0.1 in	0.76 lb	344.73 g	Hand Held Split Sides	PCB Supports	UL94 HB	Box

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 17.09

General part information

Box Plastic, ABS Almond Hand Held, Split Sides 9.500" L x 6.340" W (241.30mm x 161.04mm) X 3.000" (76.20mm)
