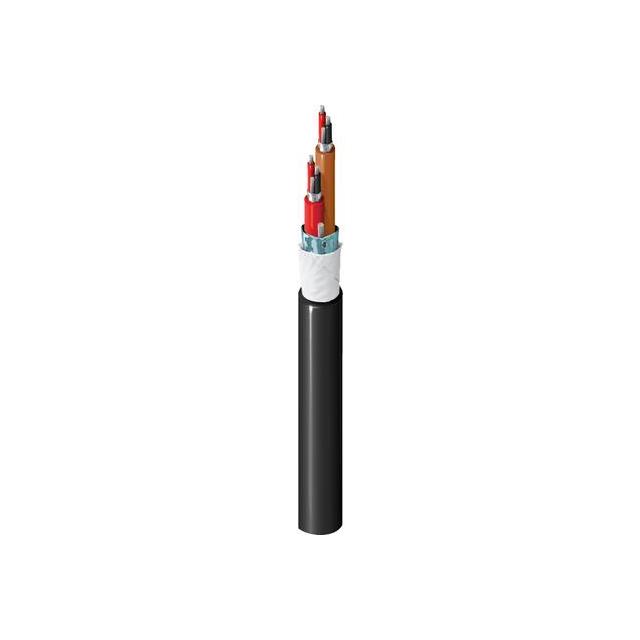

2816RW 0105000

Active

Belden Inc.

6PR22 JKT SNAKE INDOOR/OUTDOOR

Search across all available documentation for this part.

Active

Belden Inc.

6PR22 JKT SNAKE INDOOR/OUTDOOR

Technical Specifications

Parameters and characteristics for this part

Specification	2816RW 0105000

Cable Type	Multi-Pair
Conductor Insulation	Polypropylene (PP)
Conductor Material	Copper, Tinned
Conductor Strand [custom]	7
Conductor Strand [custom]	30 AWG
Features	Water-Blocked, Rip Cord, UV Resistant
Jacket (Insulation) Diameter [diameter]	0.521 in
Jacket (Insulation) Diameter [diameter]	13.23 mm
Jacket (Insulation) Material	Chlorinated Polyethylene (CPE)
Jacket Color	Black
Number of Conductors	12
Operating Temperature [Max]	75 ░C
Operating Temperature [Min]	-30 ░C
Ratings	UL Style CMR
Shield Coverage	100 %
Shield Material	Polyester, Aluminum
Shield Type	Foil
Usage	Audio
Voltage	300 V
Wire Gauge	22 AWG

Part	Shield Material	Cable Type	Voltage	Shield Coverage	Number of Conductors	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Operating Temperature [Min]	Operating Temperature [Max]	Jacket (Insulation) Material	Wire Gauge	Conductor Strand [custom]	Conductor Strand [custom]	Shield Type	Conductor Insulation	Jacket Color	Usage	Conductor Material	Features	Ratings
Belden Inc. 2816RW 0105000	Aluminum Polyester	Multi-Pair	300 V	100 %	12	0.521 in	13.23 mm	-30 ░C	75 ░C	Chlorinated Polyethylene (CPE)	22 AWG	7	30 AWG	Foil	Polypropylene (PP)	Black	Audio	Copper Tinned	Rip Cord UV Resistant Water-Blocked	UL Style CMR

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	5000	$ 5.92

General part information

12 (6 Pair) Conductor Multi-Pair Cable Black 22 AWG Foil 5000' (1524.0m)
