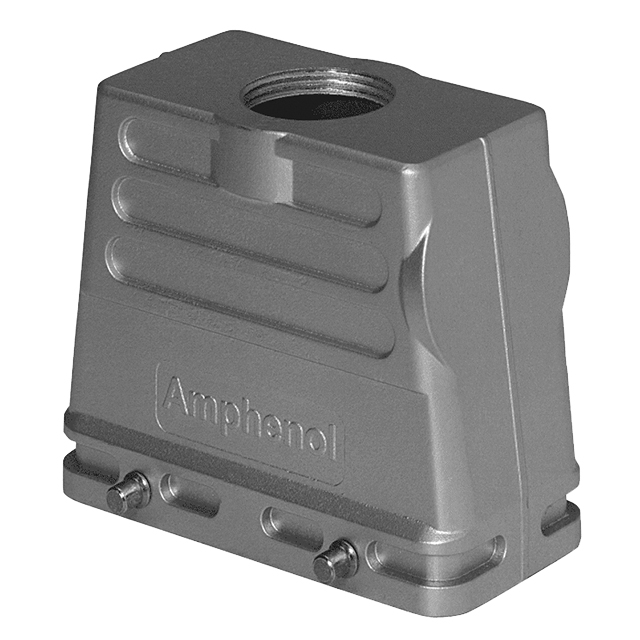

C14611G0166018

Active

Amphenol Tuchel Industrial

CONN HOOD TOP ENTRY SZE16 PG29

Search across all available documentation for this part.

Active

Amphenol Tuchel Industrial

CONN HOOD TOP ENTRY SZE16 PG29

Technical Specifications

Parameters and characteristics for this part

Specification	C14611G0166018

Connector Type	Hood
Housing Color	Gray
Housing Finish	EMC Coating
Housing Material	Die Cast, Aluminum
Ingress Protection	IP65 - Dust Tight, Water Resistant
Lock Location	Locking Clip (2) on Base Bottom
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Size	E16
Size / Dimension [x]	3.681 "
Size / Dimension [x]	93.5 mm
Size / Dimension [y]	1.693 in
Size / Dimension [y]	43 mm
Size / Dimension [z]	76 mm
Size / Dimension [z]	2.992 in
Style	Top Entry
Thread Size	PG29

Part	Thread Size	Operating Temperature [Max]	Operating Temperature [Min]	Ingress Protection	Housing Finish	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Size	Housing Color	Style	Lock Location	Housing Material	Connector Type
Amphenol Tuchel Industrial C14611G0166018	PG29	125 °C	-40 °C	IP65 - Dust Tight Water Resistant	EMC Coating	3.681 "	1.693 in	43 mm	93.5 mm	76 mm	2.992 in	E16	Gray	Top Entry	Locking Clip (2) on Base Bottom	Aluminum Die Cast	Hood

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	30	$ 20.95

General part information

Hood Connector Top Entry PG29 E16 IP65 - Dust Tight, Water Resistant
