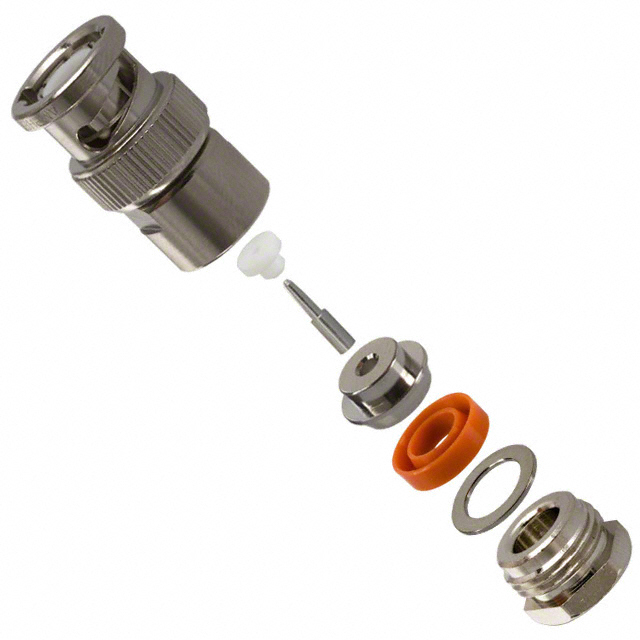

31-212

Active

Amphenol RF

CONN BNC PLUG STR 50 OHM SOLDER

Search across all available documentation for this part.

Active

Amphenol RF

CONN BNC PLUG STR 50 OHM SOLDER

Technical Specifications

Parameters and characteristics for this part

Specification	31-212

Body Finish	Nickel
Body Material	Brass
Cable Group	140, 8263, 59B, 8279, 210, Belden 8241, RG-59, 62, 9209
Center Contact Material	Brass
Center Contact Plating	Silver
Connector Style	BNC
Connector Type	Male Pin, Plug
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Bayonet Lock
Frequency - Max [Max]	4 GHz
Housing Color	Silver
Impedance	50 Ohms
Includes	Insulator, Braid Clamp, Clamp, Washer, Contact, Gasket, Connector
Insertion Loss	0.2 dB
Mating Cycles	500
Mounting Type	Free Hanging (In-Line)
Number of Ports	1
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Clamp
Voltage Rating	500 V

Part	Contact Termination	Dielectric Material	Shield Termination	Body Material	Housing Color	Center Contact Material	Connector Type	Insertion Loss	Body Finish	Operating Temperature [Min]	Operating Temperature [Max]	Mating Cycles	Includes	Frequency - Max [Max]	Cable Group	Fastening Type	Mounting Type	Impedance	Voltage Rating	Center Contact Plating	Connector Style	Number of Ports
Amphenol RF 31-212-RFX	Solder	Polytetrafluoroethylene (PTFE)	Clamp	Brass	Silver	Brass	Male Pin Plug	0.2 dB	Nickel	-65 ░C	165 °C	500	1 Braid Clamp 1 Clamp 1 Connector 1 Contact 1 Gasket 1 Washer	4 GHz	140 210 59B 62 8263 8279 9209 Belden 8241 RG-59	Bayonet Lock	Free Hanging (In-Line)	50 Ohms	500 V	Gold	BNC	1
Amphenol RF 31-212	Solder	Polytetrafluoroethylene (PTFE)	Clamp	Brass	Silver	Brass	Male Pin Plug	0.2 dB	Nickel	-65 ░C	165 °C	500	Braid Clamp Clamp Connector Contact Gasket Insulator Washer	4 GHz	140 210 59B 62 8263 8279 9209 Belden 8241 RG-59	Bayonet Lock	Free Hanging (In-Line)	50 Ohms	500 V	Silver	BNC	1

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

BNC Connector Plug, Male Pin 50 Ohms Free Hanging (In-Line) Solder
