CONN N JACK STR 50 OHM SOLDER

Search across all available documentation for this part.

Active

TE Connectivity AMP Connectors

CONN N JACK STR 50 OHM SOLDER

Technical Specifications

Parameters and characteristics for this part

Specification	1058628-1

Body Material	Stainless Steel
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Connector Style	N Type
Connector Type	Female Socket, Jack
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	18 GHz
Housing Color	Silver
Impedance	50 Ohms

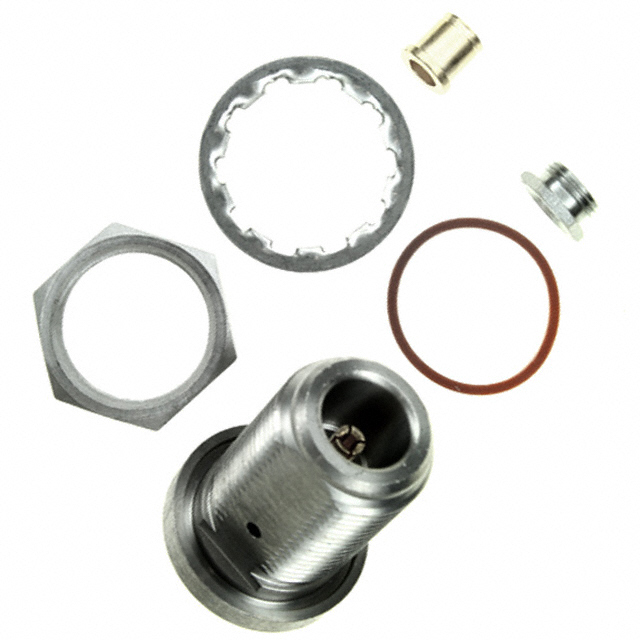

Includes	6 pcs - 1 Connector, 1 Lockwasher, 1 Gasket, 1 Nut, 1 Clamp, 1 Sleeve
Mating Cycles	500
Mounting Feature	Bulkhead - Front Side Nut
Number of Ports	1
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Clamp
Voltage Rating	1000 VDC
