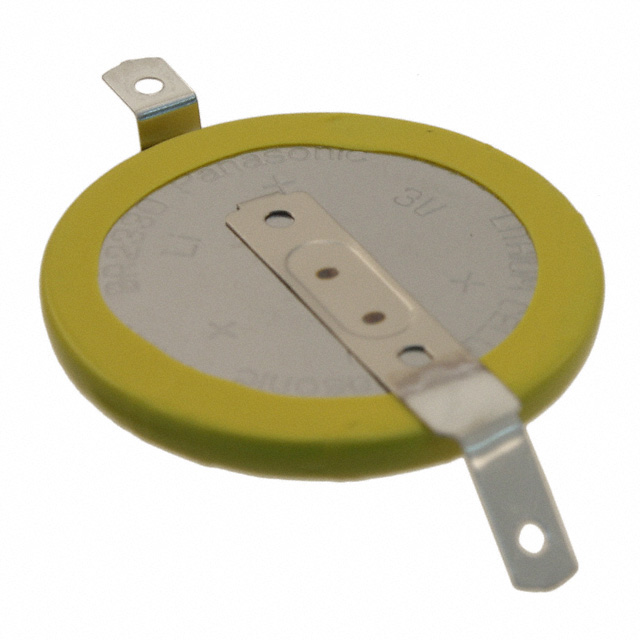

BR-2330/F3N
ActivePanasonic Industrial Automation Sales
BATTERY LITHIUM 3V COIN 23MM
Deep-Dive with AI
Search across all available documentation for this part.
BR-2330/F3N
ActivePanasonic Industrial Automation Sales
BATTERY LITHIUM 3V COIN 23MM
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | BR-2330/F3N |
|---|---|
| Battery Cell Size | Coin |
| Battery Cell Size [diameter] | 23 mm |
| Battery Chemistry | Lithium Poly-Carbon Monofluoride |
| Capacity | 255 mAh |
| Discharge Rate | 30 µA |
| Shipping Info | Due to restrictions, only ground shipment is allowed. |
| Size / Dimension [diameter] | 23 mm |
| Size / Dimension [diameter] | 0.91 " |
| Size / Dimension [z] | 3 mm |
| Size / Dimension [z] | 0.12 in |
| Termination Style | SMD (SMT) Tab |
| Voltage - Rated | 3 VDC |
| Weight | 3.2 g |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 1.51 | |
| 20 | $ 1.26 | |||
| 40 | $ 1.17 | |||
| 100 | $ 1.07 | |||
Description
General part information
BR-2330 Series
Coin, 23.0mm Lithium Poly-Carbon Monofluoride 3 V Battery Non-Rechargeable (Primary)
Documents
Technical documentation and resources
