5952-1/2"X36YD

Active

3M (TC)

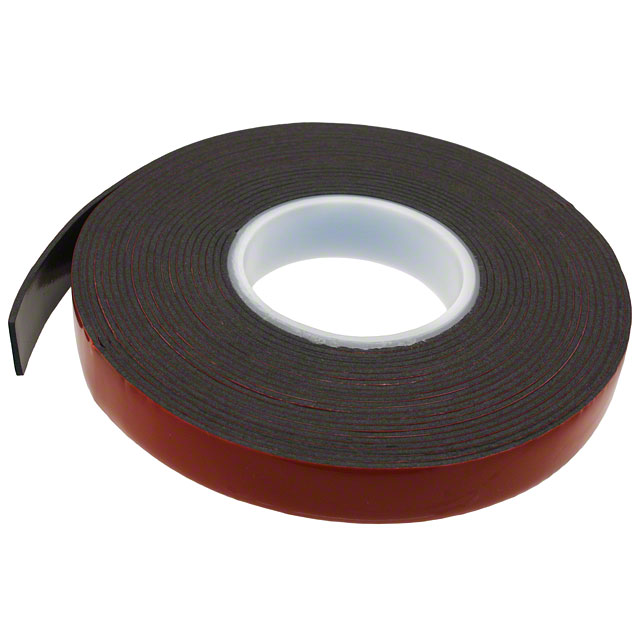

TAPE DBL SIDED BLACK 1/2"X36YDS

Search across all available documentation for this part.

Active

3M (TC)

TAPE DBL SIDED BLACK 1/2"X36YDS

Technical Specifications

Parameters and characteristics for this part

Specification	5952-1/2"X36YD

Adhesive	Acrylic
Color	Black
Length	36 yd
Length	32.9 m
Length	108 ft
Shelf Life	24 Months
Shelf Life Start	Date of Manufacture
Storage/Refrigeration Temperature [Max]	100 °F, 38 °C
Storage/Refrigeration Temperature [Min]	40 °F, 4 °C
Tape Type	Double Coated, Double Sided
Temperature Range	250 °F
Temperature Range	121 °C
Thickness	1.143 mm
Thickness	45 mils
Thickness	0.045 in
Thickness - Adhesive	0.04 in
Thickness - Adhesive	1.016 mm
Thickness - Adhesive	40 mils
Thickness - Backing, Carrier [custom]	0.005 "
Thickness - Backing, Carrier [custom]	5 mils
Thickness - Backing, Carrier [custom]	0.127 mm
Usage	General Purpose
Width	0.5 in
Width	12.7 mm
Width	0.5 in

Part	Shelf Life	Thickness - Backing, Carrier [custom]	Thickness - Backing, Carrier [custom]	Thickness - Backing, Carrier [custom]	Color	Thickness - Adhesive	Thickness - Adhesive	Thickness - Adhesive	Usage	Thickness	Thickness	Thickness	Storage/Refrigeration Temperature [Min]	Storage/Refrigeration Temperature [Max]	Length [x]	Length [x]	Length [x]	Shelf Life Start	Tape Type	Temperature Range	Temperature Range	Adhesive	Width	Width	Width	Length	Length	Length
3M (TC) 5952 3/4"X15YD	24 Months	0.005 "	5 mils	0.127 mm	Black	0.04 in	1.016 mm	40 mils	General Purpose	1.143 mm	45 mils	0.045 in	4 °C 40 °F	38 °C 100 °F	13.7 m	15 yds	45 ft	Date of Shipment	Double Coated Double Sided	250 °F	121 °C	Acrylic	0.75 in	19.05 mm	0.75 in
3M (TC) 5952-1/2"X36YD	24 Months	0.005 "	5 mils	0.127 mm	Black	0.04 in	1.016 mm	40 mils	General Purpose	1.143 mm	45 mils	0.045 in	4 °C 40 °F	38 °C 100 °F				Date of Manufacture	Double Coated Double Sided	250 °F	121 °C	Acrylic	0.5 in	0.5 in	12.7 mm	36 yd	32.9 m	108 ft

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Double Coated, Double Sided Tape Acrylic Adhesive Black 0.50" (12.70mm) 1/2" X 108' (32.9m) 36 yds
