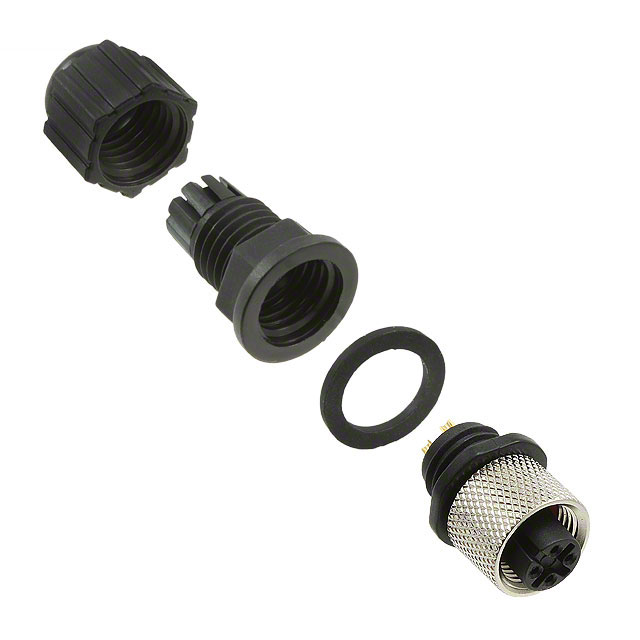

3N304-A000-S08 BF

Active

3M (TC)

CONN RCPT FMALE 4P GOLD SLDR CUP

Search across all available documentation for this part.

Active

3M (TC)

CONN RCPT FMALE 4P GOLD SLDR CUP

Technical Specifications

Parameters and characteristics for this part

Specification	3N304-A000-S08 BF

Applications	Industrial
Backshell Material, Plating	Thermoplastic
Color	Silver
Connector Type	Receptacle, Female Sockets
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	0.203 Ám
Contact Finish Thickness - Mating	8 Áin
Contact Material	Copper Alloy
Current Rating (Amps)	4 A
Features	Coupling Nut, Backshell
Ingress Protection	IP68 - Dust Tight, Waterproof
Insert Material	Thermoplastic
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Number of Positions	4
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-25 °C
Orientation	A
Primary Material	Metal
Shell Material	Metal
Shell Size - Insert	M12-4
Shielding	Shielded

Part	Color	Applications	Current Rating (Amps)	Shell Size - Insert	Material Flammability Rating	Insert Material	Number of Positions	Operating Temperature [Min]	Operating Temperature [Max]	Contact Material	Shielding	Primary Material	Backshell Material, Plating	Shell Material	Ingress Protection	Mounting Type	Contact Finish - Mating	Orientation	Features	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Connector Type
3M (TC) 3N304-A000-S08 BF	Silver	Industrial	4 A	M12-4	UL94 V-0	Thermoplastic	4	-25 °C	85 °C	Copper Alloy	Shielded	Metal	Thermoplastic	Metal	IP68 - Dust Tight Waterproof	Free Hanging (In-Line)	Gold	A	Backshell Coupling Nut	0.203 Ám	8 Áin	Receptacle Female Sockets

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

4 Position Circular Connector Receptacle, Female Sockets Solder Cup
