TD1-1A-DC-3-B

Active

Switch Components

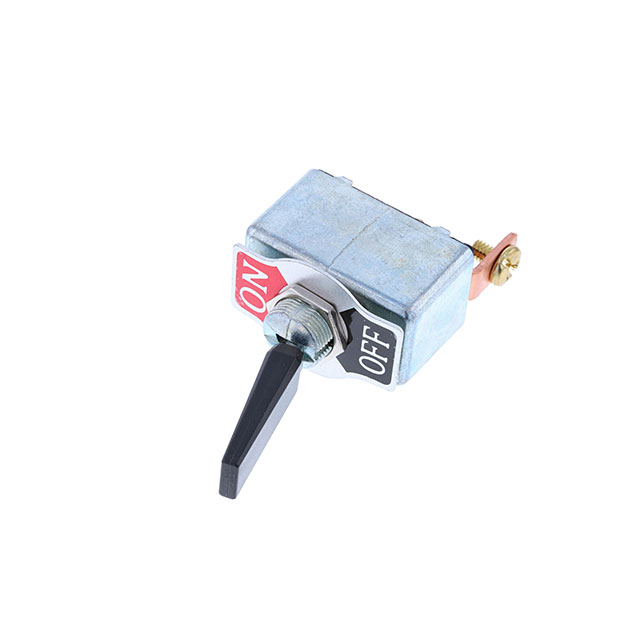

SWITCH TOGGLE SPST 50A 12V

Search across all available documentation for this part.

Active

Switch Components

SWITCH TOGGLE SPST 50A 12V

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	TD1-1A-DC-3-B	TD1-1A Series

Actuator Length [x]	28.8 mm	28.8 - 40.9 mm
Actuator Type	Flatted	Flatted, Standard Round
Bushing Thread	M12	M12
Bushing Thread	0.75	0.75
Circuit	SPST	SPST
Current Rating (Amps)	50 A	50 A
Electrical Life	6000 Cycles	6000 Cycles
Illumination	Non-Illuminated	Non-Illuminated
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-20 C	-20 C
Panel Cutout Dimensions [diameter]	12.2 mm	12.2 mm
Switch Function	On-Off	On-Off
Termination Style	Screw Terminal	Screw Terminal
Voltage Rating - DC	12 V	12 V

SWITCH TOGGLE SPST 50A 12V

Part	Termination Style	Voltage Rating - DC	Electrical Life	Illumination	Operating Temperature [Max]	Operating Temperature [Min]	Actuator Type	Panel Cutout Dimensions [diameter]	Switch Function	Bushing Thread	Bushing Thread	Current Rating (Amps)	Actuator Length [x]	Circuit
Switch Components TD1-1A-DC-3-R	Screw Terminal	12 V	6000 Cycles	Non-Illuminated	85 °C	-20 C	Flatted	12.2 mm	On-Off	M12	0.75	50 A	28.8 mm	SPST
Switch Components TD1-1A-DC-3-M	Screw Terminal	12 V	6000 Cycles	Non-Illuminated	85 °C	-20 C	Flatted	12.2 mm	On-Off	M12	0.75	50 A	38.4 mm	SPST
Switch Components TD1-1A-DC-3-H	Screw Terminal	12 V	6000 Cycles	Non-Illuminated	85 °C	-20 C	Standard Round	12.2 mm	On-Off	M12	0.75	50 A	40.9 mm	SPST
Switch Components TD1-1A-DC-3-B	Screw Terminal	12 V	6000 Cycles	Non-Illuminated	85 °C	-20 C	Flatted	12.2 mm	On-Off	M12	0.75	50 A	28.8 mm	SPST

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 5.08

General part information

Toggle Switch SPST Panel Mount
