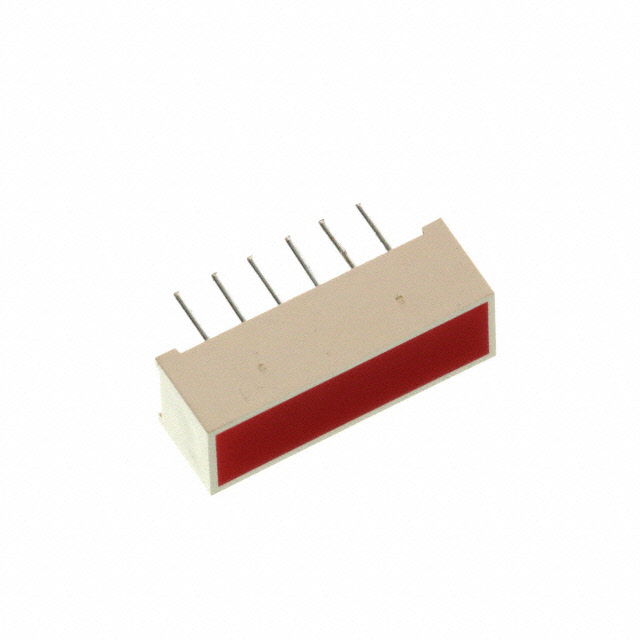

DF3SRD

Obsolete

Kingbright

LED LGT BAR 19.9X6.8MM RED

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

DF3SRD

Obsolete

Kingbright

LED LGT BAR 19.9X6.8MM RED

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	DF3SRD

Color	Red
Configuration	DIP, Bar - Single
Current	30 mA
Lens Size [x]	19.9 mm
Lens Size [y]	6.8 mm
Lens Style	Rectangle with Flat Top
Lens Type	Tinted, Diffused
Millicandela Rating	270 mcd
Mounting Type	Through Hole
Voltage Rating	1.85 V
Wavelength - Peak	660 nm

DF3 Series

Part	Lens Size [x]	Lens Size [y]	Color	Millicandela Rating	Current	Lens Style	Configuration	Mounting Type	Lens Type	Wavelength - Peak	Voltage Rating
Kingbright DF3SGD	19.9 mm	6.8 mm	Green	60 mcd	25 mA	Rectangle with Flat Top	Bar - Single DIP	Through Hole	Diffused Tinted	565 nm
Kingbright DF3GD	19.9 mm	6.8 mm	Green	34 mcd	25 mA	Rectangle with Flat Top	Bar - Single DIP	Through Hole	Diffused Tinted	565 nm
Kingbright DF3YD	19.9 mm	6.8 mm	Yellow		30 mA	Rectangle with Flat Top	Bar - Single DIP	Through Hole	Diffused Tinted	590 nm	2.1 V
Kingbright DF3SURKD	19.9 mm	6.8 mm	Red	160 mcd		Rectangle with Flat Top	Bar - Single DIP	Through Hole	Diffused Tinted	645 nm	1.95 V
Kingbright DF3ID	19.9 mm	6.8 mm	Red	27 mcd	30 mA	Rectangle with Flat Top	Bar - Single DIP	Through Hole	Diffused Tinted	627 nm	2 V
Kingbright DF3SRD	19.9 mm	6.8 mm	Red	270 mcd	30 mA	Rectangle with Flat Top	Bar - Single DIP	Through Hole	Diffused Tinted	660 nm	1.85 V
Kingbright DF3SYKD	19.9 mm	6.8 mm	Yellow	350 mcd	175 mA	Rectangle with Flat Top	Bar - Single DIP	Through Hole	Diffused Tinted	590 nm	2 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

DF3 Series

LED Circuit Board Indicator LED Circuit Board Indicator Bar - Single, DIP Red (x 3) Diffused, Tinted 1.85V 30mA Rectangle with Flat Top 19.90mm x 6.80mm Through Hole
