NCP3337MN500GEVB
Activeonsemi

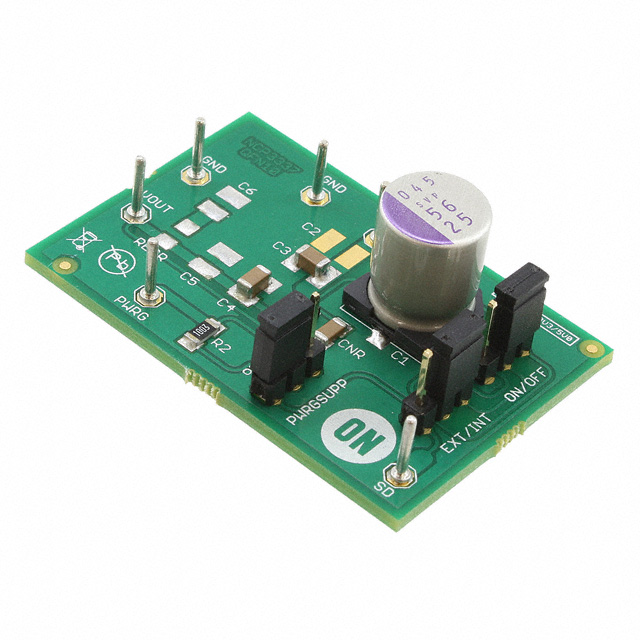

BOARD EVALUATION NCP3337 5.0V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
NCP3337MN500GEVB
Activeonsemi
BOARD EVALUATION NCP3337 5.0V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | NCP3337MN500GEVB | NCP3337 Series |
|---|---|---|
| Board Type | Fully Populated | Fully Populated |
| Channels per IC | 1 | 1 |
| Control Features | - | Power Good, Enable |
| Current - Output | 500 mA | 500 mA |
| Current - Quiescent (Iq) | - | 220 µA |
| Current - Supply (Max) | - | 14 mA |
| Mounting Type | - | Surface Mount |
| Number of Regulators | - | 1 |
| Operating Temperature | - | -40 °C |
| Operating Temperature | - | 85 °C |
| Output Configuration | - | Positive |
| Output Type | - | 27.03 °C/W |
| Output Type | - | Adjustable |
| Package / Case | - | 10-VFDFN Exposed Pad |
| Protection Features | - | Over Temperature, Over Current |
| Regulator Type | Positive Fixed | Positive Fixed |
| Supplied Contents | Board(s) | Board(s) |
| Supplier Device Package | - | 10-DFN (3x3) |
| Utilized IC / Part | NCP3337 | NCP3337 |
| Voltage - Input (Max) | - | 12 V |
| Voltage - Input [Max] | 12 V | 12 V |
| Voltage - Input [Min] | 2.9 V | 2.9 V |
| Voltage - Output | 5 V | 3.3 - 5 V |
| Voltage - Output | - | 1.25 V |
| Voltage - Output | - | 10 V |
| Voltage - Output (Max) | - | 10 V |
| Voltage - Output (Min/Fixed) | - | 1.25 - 3.3 V |
| Voltage Dropout (Max) | - | 0.62 V |
| Voltage Dropout (Max) | - | 0.34 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
NCP3337 Series
LDO REGULATOR, 500 MA, LOW IQ, WITH POWER GOOD, DFN10, 3X3, 0.5P, 3000-REEL
| Part | Voltage Dropout (Max) | Output Type | Voltage - Output (Min/Fixed) | Output Configuration | Number of Regulators | Protection Features | Package / Case | Control Features | Supplier Device Package | Current - Output | Operating Temperature [Min] | Operating Temperature [Max] | Mounting Type | Current - Quiescent (Iq) | Voltage - Input (Max) [Max] | Current - Supply (Max) [Max] | Voltage Dropout (Max) [Max] | Utilized IC / Part | Regulator Type | Voltage - Output [Min] | Voltage - Output [Max] | Channels per IC | Board Type | Voltage - Input [Min] | Voltage - Input [Max] | Supplied Contents | Voltage - Output | Output Type | Voltage - Output (Max) [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
0.62 V | 27.03 °C/W | 1.8 V | Positive | 1 | Over Current, Over Temperature | 10-VFDFN Exposed Pad | Enable, Power Good | 10-DFN (3x3) | 500 mA | -40 °C | 85 °C | Surface Mount | 220 µA | 12 V | 14 mA | ||||||||||||||
27.03 °C/W | 3.3 V | Positive | 1 | Over Current, Over Temperature | 10-VFDFN Exposed Pad | Enable, Power Good | 10-DFN (3x3) | 500 mA | -40 °C | 85 °C | Surface Mount | 220 µA | 12 V | 14 mA | 0.34 V | ||||||||||||||
onsemi NCP3337MNADJGEVBNCP3337 1 - Single Channels per IC Positive Fixed Linear Voltage Regulator Evaluation Board | 500 mA | NCP3337 | Positive Fixed | 1.25 V | 10 V | 1 | Fully Populated | 2.9 V | 12 V | Board(s) | |||||||||||||||||||
onsemi NCP3337MN500GEVBNCP3337 1 - Single Channels per IC Positive Fixed Linear Voltage Regulator Evaluation Board | 500 mA | NCP3337 | Positive Fixed | 1 | Fully Populated | 2.9 V | 12 V | Board(s) | 5 V | ||||||||||||||||||||
onsemi NCP3337MN330GEVBNCP3337 1 - Single Channels per IC Positive Fixed Linear Voltage Regulator Evaluation Board | 500 mA | NCP3337 | Positive Fixed | 1 | Fully Populated | 2.9 V | 12 V | Board(s) | 3.3 V | ||||||||||||||||||||
1.25 V | Positive | 1 | Over Current, Over Temperature | 10-VFDFN Exposed Pad | Enable, Power Good | 10-DFN (3x3) | 500 mA | -40 °C | 85 °C | Surface Mount | 220 µA | 12 V | 14 mA | 0.34 V | Adjustable | 10 V | |||||||||||||
27.03 °C/W | 2.5 V | Positive | 1 | Over Current, Over Temperature | 10-VFDFN Exposed Pad | Enable, Power Good | 10-DFN (3x3) | 500 mA | -40 °C | 85 °C | Surface Mount | 220 µA | 12 V | 14 mA | 0.34 V |
Description
General part information
NCP3337 Series
NCP3337 1 - Single Channels per IC Positive Fixed Linear Voltage Regulator Evaluation Board
