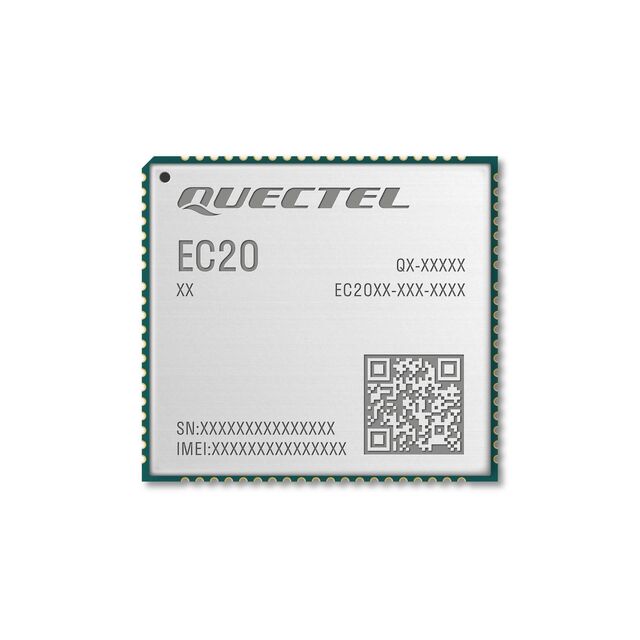

EC20EATEA-256-STD

Obsolete

Quectel

RF TXRX MOD CELL NAV SMD

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	EC20EATEA-256-STD	EC20 Series

Antenna Type	Antenna Not Included	Antenna Not Included
Current - Transmitting	20 mA	20 mA
Data Rate	150 Mbps	150 Mbps
Frequency	1800 GHz, 900 MHz	900 - 1800 GHz
Mounting Type	Surface Mount	Surface Mount
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-40 °C	-40 °C
Package / Case	Module	Module
Power - Output	33 dBm	33 dBm
Protocol	GSM, WCDMA, UMTS, GLONASS, CDMA, LTE, GPS, GPRS, Beidou, EDGE, GNSS, Galileo	GSM, WCDMA, UMTS, GLONASS, CDMA, LTE, GPS, GPRS, Beidou, EDGE, GNSS, Galileo
RF Family/Standard	Cellular, Navigation	Cellular, Navigation
Sensitivity	-112 dBm	-112 dBm
Serial Interfaces	SDIO, USB, UART, ADC	SDIO, USB, UART, ADC
Voltage - Supply [Max]	4.3 V	4.3 V
Voltage - Supply [Min]	3.3 V	3.3 V

EC20 Series

RF TXRX MOD CELL NAV SMD

Part	Protocol	Voltage - Supply [Max]	Voltage - Supply [Min]	Antenna Type	Data Rate	Package / Case	Mounting Type	Power - Output	Sensitivity	Serial Interfaces	Operating Temperature [Max]	Operating Temperature [Min]	Frequency	RF Family/Standard	Current - Transmitting
Quectel EC20CFATEA-512-STD	Beidou, CDMA, EDGE, Galileo, GLONASS, GNSS, GPRS, GPS, GSM, LTE, UMTS, WCDMA	4.3 V	3.3 V	Antenna Not Included	150 Mbps	Module	Surface Mount	33 dBm	-112 dBm	ADC, SDIO, UART, USB	85 °C	-40 °C	900 MHz, 1800 GHz	Cellular, Navigation	20 mA
Quectel EC20EATEA-256-STD	Beidou, CDMA, EDGE, Galileo, GLONASS, GNSS, GPRS, GPS, GSM, LTE, UMTS, WCDMA	4.3 V	3.3 V	Antenna Not Included	150 Mbps	Module	Surface Mount	33 dBm	-112 dBm	ADC, SDIO, UART, USB	85 °C	-40 °C	900 MHz, 1800 GHz	Cellular, Navigation	20 mA
Quectel EC20AATEA-256-STD	Beidou, CDMA, EDGE, Galileo, GLONASS, GNSS, GPRS, GPS, GSM, LTE, UMTS, WCDMA	4.3 V	3.3 V	Antenna Not Included	150 Mbps	Module	Surface Mount	33 dBm	-112 dBm	ADC, SDIO, UART, USB	85 °C	-40 °C	900 MHz, 1800 GHz	Cellular, Navigation	20 mA

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

EC20 Series

Cellular, Navigation BeiDou, CDMA, EDGE, Galileo, GLONASS, GPS, GNSS, GSM, GPRS, LTE, UMTS, WCDMA Transceiver Module 900MHz, 1.8GHz Antenna Not Included Surface Mount
