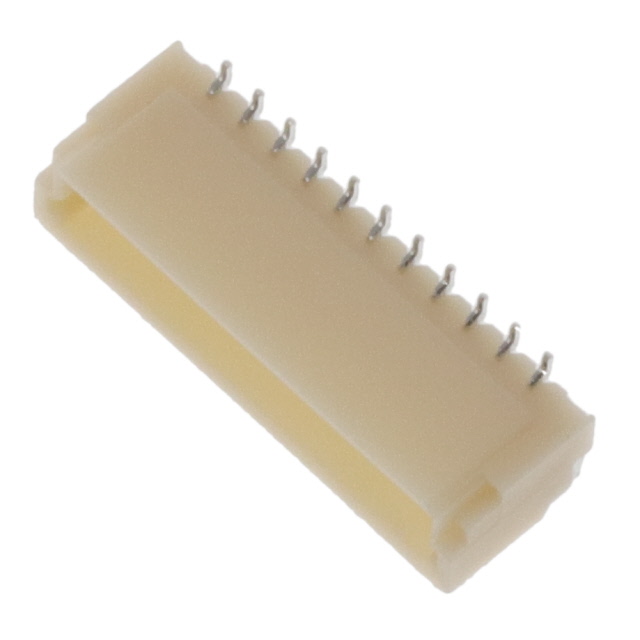

BM11B-SRSS-TBT
ActiveJST Sales America Inc.
CONN HEADER SMD 11POS 1MM
Deep-Dive with AI
Search across all available documentation for this part.
BM11B-SRSS-TBT
ActiveJST Sales America Inc.
CONN HEADER SMD 11POS 1MM
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | BM11B-SRSS-TBT |
|---|---|
| Connector Type | Header |
| Contact Finish - Post | Tin |
| Contact Material | Copper Alloy |
| Contact Shape | Square |
| Contact Type | Male Pin |
| Fastening Type | Push-Pull |
| Features | Pick and Place, Solder Retention |
| Insulation Color | Natural |
| Insulation Height | 0.167 in |
| Insulation Height | 4.25 mm |
| Insulation Material | Polyamide (PA), Nylon |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Surface Mount |
| Number of Positions | 11 |
| Number of Positions Loaded | All |
| Number of Rows | 1 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -25 °C |
| Pitch - Mating | 0.039 in |
| Pitch - Mating | 1 mm |
| Shrouding | Shrouded - 4 Wall |
| Style | Board to Cable/Wire |
| Termination | Solder |
| Voltage Rating | 50 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 1.52 | |
| 10 | $ 1.28 | |||
| 100 | $ 1.15 | |||
| 500 | $ 0.94 | |||
| Tape & Reel (TR) | 1500 | $ 0.79 | ||
| 3000 | $ 0.76 | |||
| 7500 | $ 0.73 | |||
| 10500 | $ 0.70 | |||
Description
General part information
BM11B-SR Series
Connector Header Surface Mount 11 position 0.039" (1.00mm)
