CPL-WBF-00D3
ActiveSTMicroelectronics
RF DIR COUPLER 698MHZ-2.7GHZ BGA
Deep-Dive with AI
Search across all available documentation for this part.
CPL-WBF-00D3
ActiveSTMicroelectronics
RF DIR COUPLER 698MHZ-2.7GHZ BGA
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | CPL-WBF-00D3 |
|---|---|
| Applications | W-CDMA, WiMax, GSM |
| Coupler Type | Standard |
| Coupling Factor | 30 dB |
| Frequency [Max] | 2.7 GHz |
| Frequency [Min] | 698 MHz |
| Insertion Loss | 0.3 dB |
| Return Loss | 15 dB |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
CPL-WBF Series
RF DIR COUPLER 698MHZ-2.7GHZ BGA
| Part | Coupler Type | Return Loss | Frequency [Max] | Frequency [Min] | Insertion Loss | Coupling Factor | Applications |
|---|---|---|---|---|---|---|---|
STMicroelectronics CPL-WBF-00D3 | Standard | 15 dB | 2.7 GHz | 698 MHz | 0.3 dB | 30 dB | GSM, W-CDMA, WiMax |
Description
General part information
CPL-WBF Series

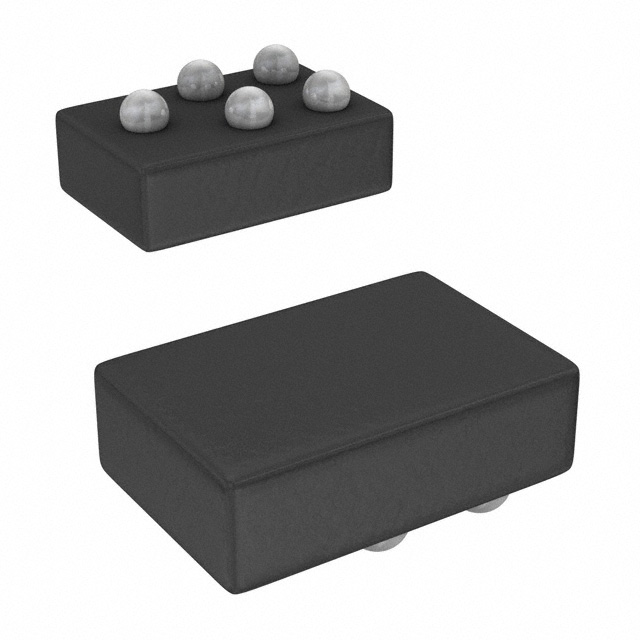

RF Directional Coupler GSM, W-CDMA, WiMax 698MHz ~ 2.7GHz 30dB 5-UFBGA, FCBGA
Documents
Technical documentation and resources
No documents available
