3-102-620

Active

SCHURTER Inc.

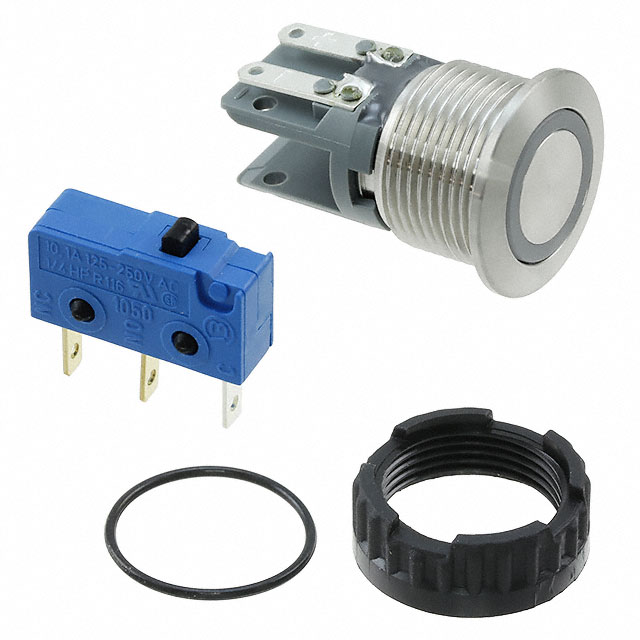

SWITCH PUSHBUTTON SPDT 10A 250V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

3-102-620

Active

SCHURTER Inc.

SWITCH PUSHBUTTON SPDT 10A 250V

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 35.80
LCSC	N/A	1	$ 0.00

Description

General part information

3-102 Series

Pushbutton Switch SPDT Anti-Vandal, Illuminated Panel Mount, Front

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	3-102-620	3-102 Series

Actuator Marking	No Marking	No Marking
Actuator Type	Flush, Button, Round	Flush, Button, Round
Circuit	SPDT	SPDT
Color - Actuator/Cap	Silver	Clear, Silver
Current Rating (Amps)	10 A	10 - 100 A
Electrical Life	50000 Cycles	50000 - 200000 Cycles
Features	-	Ceramic Actuator
Illumination Type, Color	Red, LED	White, LED, Red, Green, Blue, Yellow
Illumination Voltage (Nominal)	24 V	24 V
Ingress Protection	IP40	IP40
Mechanical Life	1500000 Cycles	1500000 Cycles
Mounting Type	Panel Mount, Front	Panel Mount, Front
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-25 °C	-25 °C
Panel Cutout Dimensions [diameter]	16.1 mm	16.1 mm
Switch Function	On-Mom	On-Mom
Termination Style	Quick Connect - 0.110" (2.8mm)	Quick Connect - 0.110" (2.8mm)
Type	Anti-Vandal, Illuminated	Anti-Vandal, Illuminated
Voltage Rating - AC	250 V	250 V
Voltage Rating - DC	-	30 V

3-102 Series

MSM MECHANICAL METAL LINE SWITCH

Part	Type	Color - Actuator/Cap	Illumination Type, Color	Actuator Marking	Features	Current Rating (Amps)	Operating Temperature [Min]	Operating Temperature [Max]	Panel Cutout Dimensions [diameter]	Mounting Type	Mechanical Life	Voltage Rating - AC	Switch Function	Ingress Protection	Electrical Life	Circuit	Illumination Voltage (Nominal)	Termination Style	Actuator Type	Voltage Rating - DC
SCHURTER Inc. 3-102-648	Anti-Vandal, Illuminated	Clear	LED, White	No Marking	Ceramic Actuator	10 A	-25 °C	85 °C	16.1 mm	Panel Mount, Front	1500000 Cycles	250 V	On-Mom	IP40	50000 Cycles	SPDT	24 V	Quick Connect - 0.110" (2.8mm)	Button, Flush, Round
SCHURTER Inc. 3-102-633	Anti-Vandal, Illuminated	Clear	LED, Red	No Marking	Ceramic Actuator	100 mA	-25 °C	85 °C	16.1 mm	Panel Mount, Front	1500000 Cycles		On-Mom	IP40	200000 Cycles	SPDT	24 V	Quick Connect - 0.110" (2.8mm)	Button, Flush, Round	30 V
SCHURTER Inc. 3-102-636	Anti-Vandal, Illuminated	Clear	Green, LED	No Marking	Ceramic Actuator	100 mA	-25 °C	85 °C	16.1 mm	Panel Mount, Front	1500000 Cycles		On-Mom	IP40	200000 Cycles	SPDT	24 V	Quick Connect - 0.110" (2.8mm)	Button, Flush, Round	30 V
SCHURTER Inc. 3-102-632	Anti-Vandal, Illuminated	Silver	LED, White	No Marking		10 A	-25 °C	85 °C	16.1 mm	Panel Mount, Front	1500000 Cycles	250 V	On-Mom	IP40	50000 Cycles	SPDT	24 V	Quick Connect - 0.110" (2.8mm)	Button, Flush, Round
SCHURTER Inc. 3-102-624	Anti-Vandal, Illuminated	Silver	Blue, LED	No Marking		100 mA	-25 °C	85 °C	16.1 mm	Panel Mount, Front	1500000 Cycles		On-Mom	IP40	200000 Cycles	SPDT	24 V	Quick Connect - 0.110" (2.8mm)	Button, Flush, Round	30 V
SCHURTER Inc. 3-102-618	Anti-Vandal, Illuminated	Silver	LED, Red	No Marking		100 mA	-25 °C	85 °C	16.1 mm	Panel Mount, Front	1500000 Cycles		On-Mom	IP40	200000 Cycles	SPDT	24 V	Quick Connect - 0.110" (2.8mm)	Button, Flush, Round	30 V
SCHURTER Inc. 3-102-620	Anti-Vandal, Illuminated	Silver	LED, Red	No Marking		10 A	-25 °C	85 °C	16.1 mm	Panel Mount, Front	1500000 Cycles	250 V	On-Mom	IP40	50000 Cycles	SPDT	24 V	Quick Connect - 0.110" (2.8mm)	Button, Flush, Round
SCHURTER Inc. 3-102-627	Anti-Vandal, Illuminated	Silver	LED, Yellow	No Marking		100 mA	-25 °C	85 °C	16.1 mm	Panel Mount, Front	1500000 Cycles		On-Mom	IP40	200000 Cycles	SPDT	24 V	Quick Connect - 0.110" (2.8mm)	Button, Flush, Round	30 V
SCHURTER Inc. 3-102-640	Anti-Vandal, Illuminated	Clear	Blue, LED	No Marking	Ceramic Actuator	100 mA	-25 °C	85 °C	16.1 mm	Panel Mount, Front	1500000 Cycles		On-Mom	IP40	200000 Cycles	SPDT	24 V	Quick Connect - 0.110" (2.8mm)	Button, Flush, Round	30 V
