A11CSQ24VDC1.2D

Active

CIT Relay and Switch

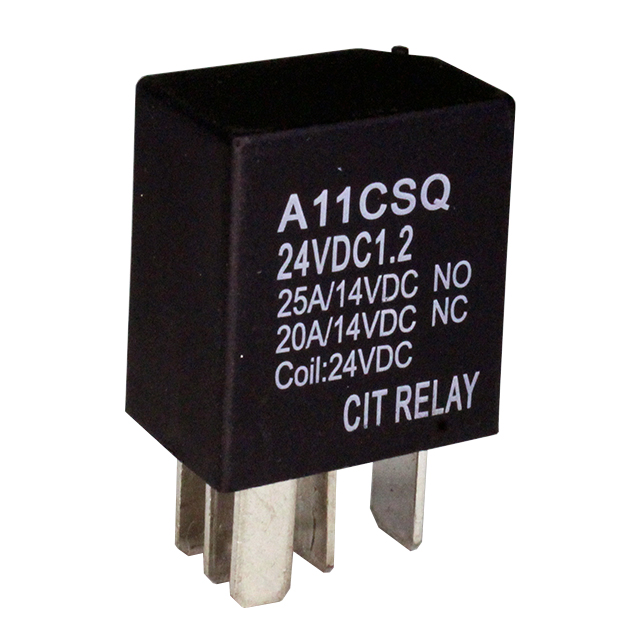

RELAY AUTOMOTIVE SPDT 30A 24V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsA Series Relays Datasheet

A11CSQ24VDC1.2D

Active

CIT Relay and Switch

RELAY AUTOMOTIVE SPDT 30A 24V

Deep-Dive with AI

DocumentsA Series Relays Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	A11CSQ24VDC1.2D	A11CSQ Series

Coil Current	50 mA	50 - 125 mA
Coil Power	1.2 W	1.2 - 1.5 W
Coil Resistance	480 Ohms	96 - 480 Ohms
Coil Type	Non Latching	Non Latching
Coil Voltage	24 VDC	12 - 24 VDC
Contact Form	SPDT (1 Form C)	SPDT (1 Form C)
Contact Material	Silver Tin Oxide (AgSnO)	Silver Tin Oxide (AgSnO)
Contact Rating (Current)	30 A	30 A
Features	Sealed - Fully, Diode	Sealed - Fully, Diode, Resistor
Mounting Type	Socketable	Socketable
Must Operate Voltage	18 VDC	8.4 - 18 VDC
Must Release Voltage	2.4 VDC	1.2 - 2.4 VDC
Operate Time	10 ms	10 ms
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-40 °C	-40 °C
Release Time	7 ms	7 ms
Switching Voltage	75 VDC	75 VDC
Termination Style	Plug In, Quick Connect - 0.187" (4.7mm)	Plug In, Quick Connect - 0.187" (4.7mm)

A11CSQ Series

RELAY AUTOMOTIVE SPDT 30A 24V

Part	Termination Style	Operate Time	Coil Resistance	Operating Temperature [Max]	Operating Temperature [Min]	Switching Voltage	Must Release Voltage	Coil Power	Must Operate Voltage	Features	Contact Form	Coil Type	Coil Voltage	Release Time	Mounting Type	Coil Current	Contact Material	Contact Rating (Current)
CIT Relay and Switch A11CSQ24VDC1.2	Plug In, Quick Connect - 0.187" (4.7mm)	10 ms	480 Ohms	85 °C	-40 °C	75 VDC	2.4 VDC	1.2 W	18 VDC	Sealed - Fully	SPDT (1 Form C)	Non Latching	24 VDC	7 ms	Socketable	50 mA	Silver Tin Oxide (AgSnO)	30 A
CIT Relay and Switch A11CSQ12VDC1.2	Plug In, Quick Connect - 0.187" (4.7mm)	10 ms	120 Ohms	85 °C	-40 °C	75 VDC	1.2 VDC	1.2 W	8.4 VDC	Sealed - Fully	SPDT (1 Form C)	Non Latching	12 VDC	7 ms	Socketable	100 mA	Silver Tin Oxide (AgSnO)	30 A
CIT Relay and Switch A11CSQ24VDC1.5D	Plug In, Quick Connect - 0.187" (4.7mm)	10 ms	384 Ohms	85 °C	-40 °C	75 VDC	2.4 VDC	1.5 W	18 VDC	Diode, Sealed - Fully	SPDT (1 Form C)	Non Latching	24 VDC	7 ms	Socketable	62.5 mA	Silver Tin Oxide (AgSnO)	30 A
CIT Relay and Switch A11CSQ12VDC1.5D	Plug In, Quick Connect - 0.187" (4.7mm)	10 ms	96 Ohms	85 °C	-40 °C	75 VDC	1.2 VDC	1.5 W	8.4 VDC	Diode, Sealed - Fully	SPDT (1 Form C)	Non Latching	12 VDC	7 ms	Socketable	125 mA	Silver Tin Oxide (AgSnO)	30 A
CIT Relay and Switch A11CSQ24VDC1.2R	Plug In, Quick Connect - 0.187" (4.7mm)	10 ms	480 Ohms	85 °C	-40 °C	75 VDC	2.4 VDC	1.2 W	18 VDC	Resistor, Sealed - Fully	SPDT (1 Form C)	Non Latching	24 VDC	7 ms	Socketable	50 mA	Silver Tin Oxide (AgSnO)	30 A
CIT Relay and Switch A11CSQ24VDC1.2D	Plug In, Quick Connect - 0.187" (4.7mm)	10 ms	480 Ohms	85 °C	-40 °C	75 VDC	2.4 VDC	1.2 W	18 VDC	Diode, Sealed - Fully	SPDT (1 Form C)	Non Latching	24 VDC	7 ms	Socketable	50 mA	Silver Tin Oxide (AgSnO)	30 A
CIT Relay and Switch A11CSQ12VDC1.5	Plug In, Quick Connect - 0.187" (4.7mm)	10 ms	96 Ohms	85 °C	-40 °C	75 VDC	1.2 VDC	1.5 W	8.4 VDC	Sealed - Fully	SPDT (1 Form C)	Non Latching	12 VDC	7 ms	Socketable	125 mA	Silver Tin Oxide (AgSnO)	30 A
CIT Relay and Switch A11CSQ12VDC1.2D	Plug In, Quick Connect - 0.187" (4.7mm)	10 ms	120 Ohms	85 °C	-40 °C	75 VDC	1.2 VDC	1.2 W	8.4 VDC	Diode, Sealed - Fully	SPDT (1 Form C)	Non Latching	12 VDC	7 ms	Socketable	100 mA	Silver Tin Oxide (AgSnO)	30 A

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1	$ 1.81
		10	$ 1.69
		25	$ 1.51
		50	$ 1.43
		100	$ 1.35
		250	$ 1.32

Description

General part information

A11CSQ Series

RELAY AUTOMOTIVE SPDT 30A 24V

Documents

Technical documentation and resources

A Series Relays

Datasheet
