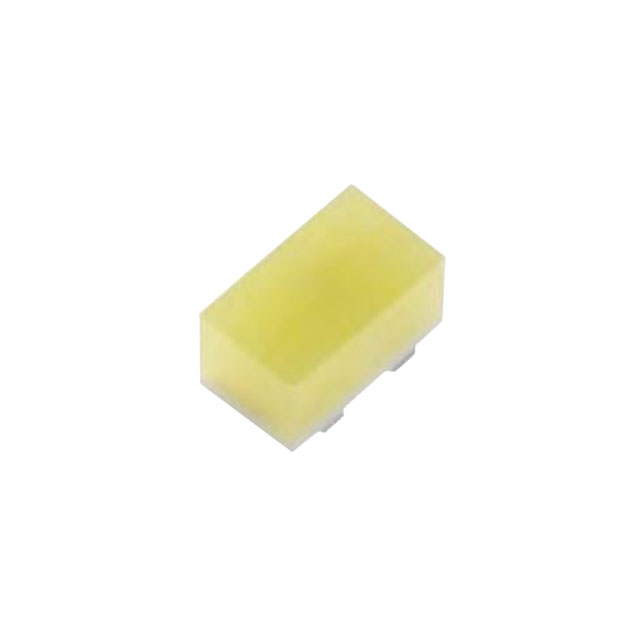

EAST0603WA0
ActiveEverlight Electronics Co Ltd
LED WHITE DIFFUSED 2SMD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
EAST0603WA0
ActiveEverlight Electronics Co Ltd
LED WHITE DIFFUSED 2SMD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | EAST0603WA0 |
|---|---|
| Color | White |
| Configuration | Standard |
| Current - Test | 2 mA |
| Height (Max) [Max] [z] | 0.45 mm |
| Lens Size [x] | 0.65 mm |
| Lens Size [y] | 0.38 mm |
| Lens Style | Rectangle with Flat Top |
| Lens Transparency | Diffused |
| Mounting Type | Surface Mount |
| Package / Case | 2-SMD, No Lead |
| Size / Dimension [x] | 0.65 mm |
| Size / Dimension [y] | 0.38 mm |
| Supplier Device Package | 2-SMD |
| Viewing Angle | 120 ° |
| Voltage - Forward (Vf) (Typ) | 2.7 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.37 | |
| 10 | $ 0.29 | |||
| 100 | $ 0.13 | |||
| 500 | $ 0.12 | |||
| 1000 | $ 0.10 | |||
| Digi-Reel® | 1 | $ 0.37 | ||
| 10 | $ 0.29 | |||
| 100 | $ 0.13 | |||
| 500 | $ 0.12 | |||
| 1000 | $ 0.10 | |||
| Tape & Reel (TR) | 3000 | $ 0.09 | ||
| 6000 | $ 0.08 | |||
| 15000 | $ 0.07 | |||
| 30000 | $ 0.06 | |||
| 75000 | $ 0.06 | |||
| 150000 | $ 0.06 | |||
Description
General part information
EAST0603 Series
White LED Indication - Discrete 2.7V 2-SMD, No Lead
