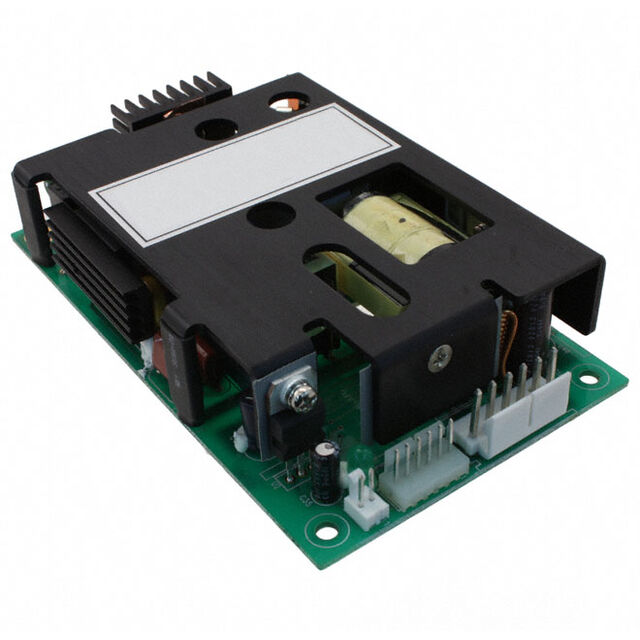

MPB125-2005G

Active

Bel Power Solutions

AC/DC CONVERTER 5V 12V 125W

Deep-Dive with AI

Search across all available documentation for this part.

MPB125-2005G

Active

Bel Power Solutions

AC/DC CONVERTER 5V 12V 125W

Deep-Dive with AI

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

MPB125 Series

Open Frame AC DC Converters 2 Output 5V 12V 90 ~ 264 VAC Input

Documents

Technical documentation and resources

No documents available

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	MPB125-2005G	MPB125 Series

Applications	ITE (Commercial)	ITE (Commercial)
Approval Agency	CE	CE
Current - Output 1	25 A	5.2 - 25 A
Current - Output 2	500 mA	15 - 500 A
Current - Output 3	-	5 A
Current - Output 4	-	500 mA
Efficiency	83 %	73 - 90 %
Features	Adjustable Output, Universal Input, Load Sharing, Remote Sense, PFC	Adjustable Output, Universal Input, Load Sharing, Remote Sense, PFC, Remote On/Off
Minimum Load Required	True	True
Mounting Type	Chassis Mount	Chassis Mount
Number of Outputs	2	2 - 4
Operating Temperature [Max]	70 °C	70 °C
Operating Temperature [Min]	-20 °C	-20 - 0 °C
Power (Watts)	125 W	125 W
Size / Dimension [x]	5 in	5 in
Size / Dimension [x]	127 mm	127 mm
Size / Dimension [y]	3 "	3 "
Size / Dimension [y]	76.2 mm	76.2 mm
Size / Dimension [z]	1 "	1 - 1.25 "
Size / Dimension [z]	25.4 mm	25.4 - 31.8 mm
Type	Open Frame	Open Frame
Voltage - Input [Max]	264 VAC	264 VAC
Voltage - Input [Min]	90 VAC	90 VAC
Voltage - Isolation	3000 V	3000 V
Voltage - Output 1	5 V	3.3 - 24 V
Voltage - Output 2	12 V	5 - 12 V
Voltage - Output 3	-	12 V

MPB125 Series

AC/DC CNVRTR 3.3V 5V +/-12V 125W

Part	Features	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Input [Min]	Voltage - Input [Max]	Current - Output 2	Voltage - Output 1	Power (Watts)	Approval Agency	Efficiency	Current - Output 3	Type	Voltage - Isolation	Voltage - Output 2	Voltage - Output 3	Applications	Number of Outputs	Mounting Type	Current - Output 1	Current - Output 4	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]
Bel Power Solutions MPB125-4350G	Adjustable Output, Load Sharing, PFC, Remote Sense, Universal Input	-20 °C	70 °C	90 VAC	264 VAC	15 A	3.3 V	125 W	CE	83 %	5 A	Open Frame	3000 V	5 V	12 V	ITE (Commercial)	4	Chassis Mount	10 A	500 mA	1 "	25.4 mm	3 "	5 in	127 mm	76.2 mm
Bel Power Solutions MPB125-4350RG	Adjustable Output, Load Sharing, PFC, Remote On/Off, Remote Sense, Universal Input	-20 °C	70 °C	90 VAC	264 VAC	15 A	3.3 V	125 W	CE	83 %	5 A	Open Frame	3000 V	5 V	12 V	ITE (Commercial)	4	Chassis Mount	10 A	500 mA	1 "	25.4 mm	3 "	5 in	127 mm	76.2 mm
Bel Power Solutions MPB125-2012G	Adjustable Output, Load Sharing, PFC, Remote Sense, Universal Input	-20 °C	70 °C	90 VAC	264 VAC	500 mA	12 V	125 W	CE	86 %		Open Frame	3000 V	12 V		ITE (Commercial)	2	Chassis Mount	10.5 A		1 "	25.4 mm	3 "	5 in	127 mm	76.2 mm
Bel Power Solutions MPB125-2024G	Adjustable Output, Load Sharing, PFC, Remote Sense, Universal Input	-20 °C	70 °C	90 VAC	264 VAC	500 mA	24 V	125 W	CE	90 %		Open Frame	3000 V	12 V		ITE (Commercial)	2	Chassis Mount	5.2 A		1 "	25.4 mm	3 "	5 in	127 mm	76.2 mm
Bel Power Solutions MPB125-2005D	PFC, Remote Sense, Universal Input	0 °C	70 °C	90 VAC	264 VAC	500 mA	5 V		CE	73 %		Open Frame	3000 V	12 V		ITE (Commercial)	2	Chassis Mount	25 A		1.25 "	31.8 mm	3 "	5 in	127 mm	76.2 mm
Bel Power Solutions MPB125-2005G	Adjustable Output, Load Sharing, PFC, Remote Sense, Universal Input	-20 °C	70 °C	90 VAC	264 VAC	500 mA	5 V	125 W	CE	83 %		Open Frame	3000 V	12 V		ITE (Commercial)	2	Chassis Mount	25 A		1 "	25.4 mm	3 "	5 in	127 mm	76.2 mm
