IRS2008STRPBF
ActiveInfineon Technologies

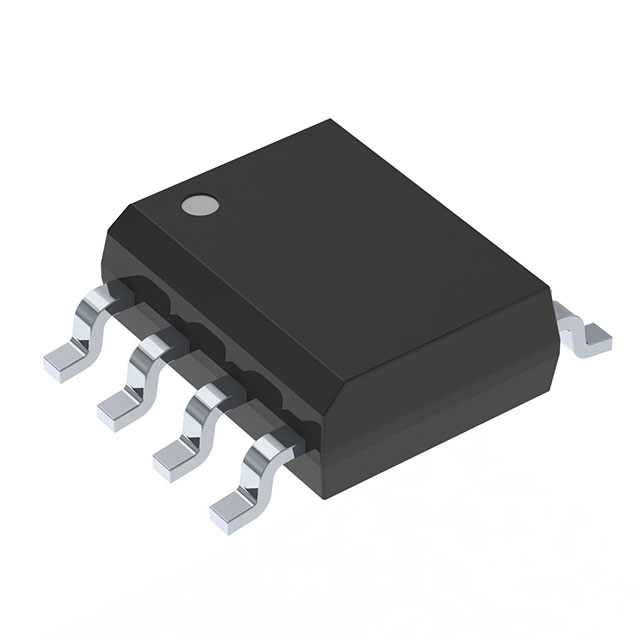

IC GATE DRVR HALF-BRIDGE 8SOIC
Deep-Dive with AI
Search across all available documentation for this part.
IRS2008STRPBF
ActiveInfineon Technologies
IC GATE DRVR HALF-BRIDGE 8SOIC
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | IRS2008STRPBF | IRS2008 Series |
|---|---|---|
| Channel Type | Synchronous | Synchronous |
| Current - Peak Output (Source, Sink) [custom] | 290 mA | 290 mA |
| Current - Peak Output (Source, Sink) [custom] | 600 mA | 600 mA |
| Driven Configuration | Half-Bridge | Half-Bridge |
| Gate Type | N-Channel MOSFET | N-Channel MOSFET, IGBT |
| High Side Voltage - Max (Bootstrap) [Max] | 200 V | 200 V |
| Input Type | Non-Inverting | CMOS, Non-Inverting |
| Logic Voltage - VIL, VIH | 0.8 V, 2.5 V | 0.8 - 2.5 V |
| Mounting Type | Surface Mount | Surface Mount |
| Number of Drivers | 2 | 1 - 2 |
| Operating Temperature [Max] | 150 C | 125 - 150 °C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Package / Case | 3.9 mm | 3.9 mm |
| Package / Case | 8-SOIC | 14-VFQFN Exposed Pad, 8-SOIC |
| Rise / Fall Time (Typ) | 30 ns, 70 ns | 30 - 70 ns |
| Supplier Device Package | 8-SOIC | 14-MLPQ (4x4), 8-SOIC |
| Voltage - Supply [Max] | 20 V | 20 V |
| Voltage - Supply [Min] | 10 VDC | 10 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.92 | |
| 10 | $ 0.83 | |||
| 25 | $ 0.78 | |||
| 100 | $ 0.64 | |||
| 250 | $ 0.60 | |||
| 500 | $ 0.53 | |||
| 1000 | $ 0.42 | |||
| Digi-Reel® | 1 | $ 0.92 | ||
| 10 | $ 0.83 | |||
| 25 | $ 0.78 | |||
| 100 | $ 0.64 | |||
| 250 | $ 0.60 | |||
| 500 | $ 0.53 | |||
| 1000 | $ 0.42 | |||
| Tape & Reel (TR) | 2500 | $ 0.39 | ||
| 5000 | $ 0.37 | |||
| 12500 | $ 0.36 | |||
| 25000 | $ 0.35 | |||
IRS2008 Series
IC GATE DRVR HALF-BRIDGE 14MLPQ
| Part | Supplier Device Package | Mounting Type | Operating Temperature [Min] | Operating Temperature [Max] | Package / Case | Gate Type | Logic Voltage - VIL, VIH | Current - Peak Output (Source, Sink) [custom] | Current - Peak Output (Source, Sink) [custom] | Input Type | Rise / Fall Time (Typ) | High Side Voltage - Max (Bootstrap) [Max] | Voltage - Supply [Max] | Voltage - Supply [Min] | Number of Drivers | Driven Configuration | Channel Type | Package / Case |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Infineon Technologies IRS2008MTRPBFAUMA1 | 14-MLPQ (4x4) | Surface Mount | -40 °C | 125 °C | 14-VFQFN Exposed Pad | IGBT, N-Channel MOSFET | 0.8 V, 2.5 V | 290 mA | 600 mA | CMOS | 30 ns, 70 ns | 200 V | 20 V | 10 VDC | 1 | Half-Bridge | Synchronous | |
Infineon Technologies IRS2008STRPBF | 8-SOIC | Surface Mount | -40 °C | 150 C | 8-SOIC | N-Channel MOSFET | 0.8 V, 2.5 V | 290 mA | 600 mA | Non-Inverting | 30 ns, 70 ns | 200 V | 20 V | 10 VDC | 2 | Half-Bridge | Synchronous | 3.9 mm |
Description
General part information
IRS2008 Series
Half-Bridge Gate Driver IC Non-Inverting 8-SOIC
