D38999/24WH21SA

Active

Corsair

RECEPT

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

D38999/24WH21SA

Active

Corsair

RECEPT

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 74.87
		25	$ 70.20
		250	$ 64.18
		1000	$ 59.91
	Box	2	$ 111.07
		10	$ 102.18
		50	$ 94.01
		100	$ 86.49
		500	$ 79.57
	Bulk	50	$ 334.72

Description

General part information

D38999/24WH Series

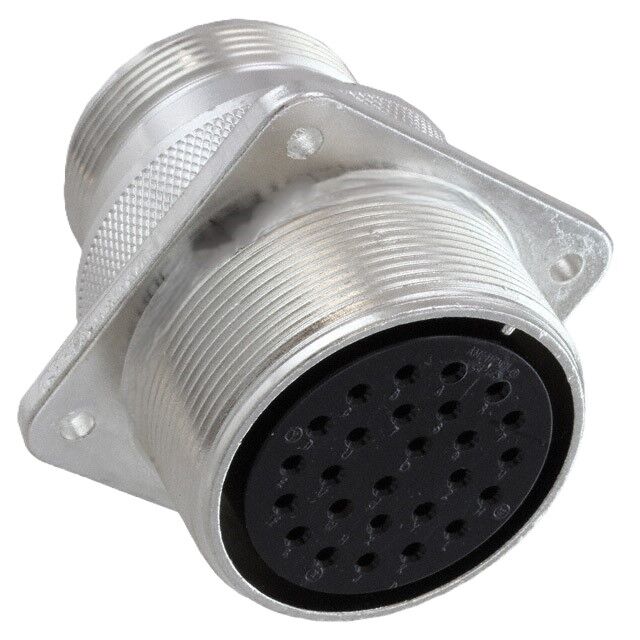

21 Position Circular Connector Receptacle, Female Sockets Crimp

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	D38999/24WH21SA	D38999/24WH Series

	-	-
Applications	Aviation, Marine, Military, Aerospace	Aviation, Marine, Military, Aerospace
Color	Olive Drab	Olive Drab
Connector Type	Receptacle, Female Sockets	Receptacle, Female Sockets, Receptacle, Male Pins, Receptacle Housing
Contact Finish - Mating	Gold	Gold
Contact Finish Thickness - Mating	1.27 µm	1.27 µm
Contact Finish Thickness - Mating	50 µin	50 µin
Contact Material	Copper Alloy	Copper Alloy
Contact Shape	-	Circular
Contact Size	-	16
Contact Type	-	Crimp
Current Rating (Amps)	13 A	5 - 13 A
Features	Self Locking	Self Locking
Grade	Military	Military
Housing Color	-	Olive Drab
Ingress Protection	Weathertight, IP67 - Dust Tight, Waterproof	Weathertight, IP67 - Dust Tight, Waterproof, Environment Resistant
Insert Material	Thermoplastic	Thermoplastic
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Feature	Bulkhead - Front Side Nut	Bulkhead - Front Side Nut
Note	-	Contacts Not Included
Number of Positions	21	21 - 100
Operating Temperature [Max]	347 °F	347 °F
Operating Temperature [Min]	-65 ░C	-65 ░C
Orientation	A	A
Primary Material	Metal	Metal
Qualification	MIL-DTL-38999 Series III	MIL-DTL-38999 Series III
Shell Finish	Olive Drab Cadmium	Olive Drab Cadmium, Cadmium
Shell Material	Aluminum	Aluminum
Shell Size - Insert [Max]	23	23 - 55
Shell Size - Insert [Min]	21	21 - 23
Shell Size, MIL	H	H
Shielding	Shielded	Shielded, Unshielded
Termination	Crimp	Crimp
Type	-	For Female Sockets
Voltage Rating	500 VAC	500 VAC

D38999/24WH Series

RECEPT

Part	Shell Finish	Voltage Rating	Contact Finish - Mating	Ingress Protection	Material Flammability Rating	Termination	Applications	Current Rating (Amps)	Grade	Color	Contact Material	Insert Material	Shell Material	Shielding	Qualification	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Shell Size - Insert [Min]	Shell Size - Insert [Max]	Connector Type	Number of Positions	Mounting Feature	Orientation	Features	Shell Size, MIL	Primary Material	Note	Contact Size	Contact Shape	Contact Type	Housing Color	Type
Corsair D38999/24WH21SA	Olive Drab Cadmium	500 VAC	Gold	IP67 - Dust Tight, Waterproof, Weathertight	UL94 V-0	Crimp	Aerospace, Aviation, Marine, Military	13 A	Military	Olive Drab	Copper Alloy	Thermoplastic	Aluminum	Shielded	MIL-DTL-38999 Series III	-65 ░C	347 °F	1.27 µm	50 µin	21	23	Receptacle, Female Sockets	21	Bulkhead - Front Side Nut	A	Self Locking	H	Metal
Corsair D38999/24WH35SA	Olive Drab Cadmium		Gold	IP67 - Dust Tight, Waterproof		Crimp	Aviation, Marine, Military	5 A		Olive Drab	Copper Alloy	Thermoplastic	Aluminum	Shielded		-65 ░C	347 °F	1.27 µm	50 µin	23	35	Receptacle, Female Sockets	100	Bulkhead - Front Side Nut	A		H	Metal
Corsair D38999/24WH55HA			Gold			Crimp				Olive Drab										23	55	Male Pins, Receptacle	55 positions	Bulkhead - Front Side Nut	A
Corsair D38999/24WH2SAL
Corsair D38999/24WH21SAL	Cadmium			Environment Resistant					Military			Thermoplastic	Aluminum	Unshielded	MIL-DTL-38999 Series III	-65 ░C	347 °F			21	23	Receptacle Housing	21	Bulkhead - Front Side Nut	A		H		Contacts Not Included	16	Circular	Crimp	Olive Drab	For Female Sockets
