EL-GFX-DTP+

Active

Lascar Electronics

THERMO HANDHELD -40-257F DATA

Search across all available documentation for this part.

Active

Lascar Electronics

THERMO HANDHELD -40-257F DATA

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 302.99

General part information

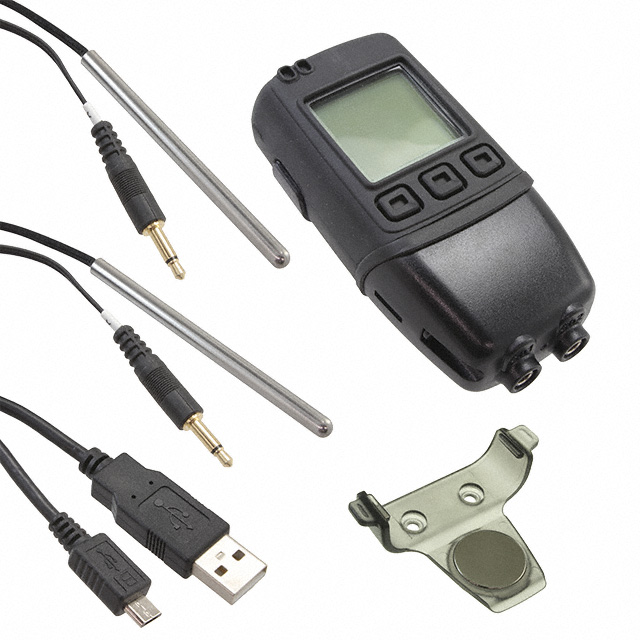

Handheld -40 ~ 257°F (-40 ~ 125°C) Probe Thermometer LCD, Dual C°/F° Data Logging, Flashlight, LED Indicator

Specification	EL-GFX-DTP+	EL-GFX-D Series

Battery Cell Size	1/2AA (2)	1/2AA (2)
Display Type	Dual, LCD	Dual, LCD
Features	LED Indicator, Flashlight, Data Logging	LED Indicator, Flashlight, Data Logging
For Measuring	-	Humidity, Temperature
Includes	Mounting Bracket, USB Cable, Probe, Battery	Battery, Software, Probe, Bracket, Cable, Mounting Bracket, USB Cable, Cover, Mounting Clip
Input Type	Probe	Probe, Thermocouple
Probe Type	-	K, J, T
Temperature Display	C°, F°	C°, F°
Temperature Range [Max]	125 °C	125 - 2462 °C
Temperature Range [Min]	-40 °F	-200 - -40 °F
Type	Handheld	Data Logger, Handheld

Part	Type	Includes	For Measuring	Input Type	Temperature Display	Battery Cell Size	Features	Temperature Range [Min]	Temperature Range [Max]	Display Type	Probe Type
Lascar Electronics EL-GFX-D2	Data Logger	Battery, Bracket, Cable, Probe, Software	Humidity, Temperature
Lascar Electronics EL-GFX-DTP	Handheld	Battery, Mounting Bracket, Probe, USB Cable		Probe	C°, F°	1/2AA (2)	Data Logging, Flashlight, LED Indicator	-40 °F	125 °C	Dual, LCD
Lascar Electronics EL-GFX-DTC	Handheld	Battery, Cable, Cover, Mounting Clip, Probe		Thermocouple	C°, F°	1/2AA (2)	Data Logging, Flashlight, LED Indicator	-200 °C	2462 °F	Dual, LCD	J, K, T
Lascar Electronics EL-GFX-DTP+	Handheld	Battery, Mounting Bracket, Probe, USB Cable		Probe	C°, F°	1/2AA (2)	Data Logging, Flashlight, LED Indicator	-40 °F	125 °C	Dual, LCD
