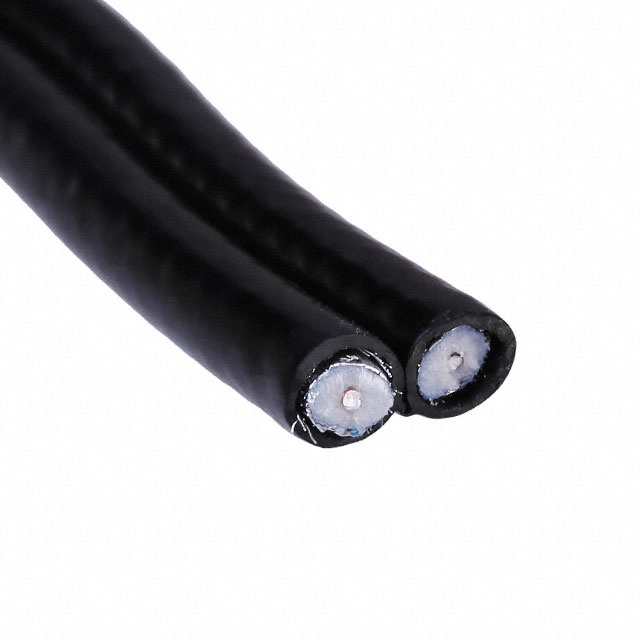

C5822.18.01

Active

Prysmian Group

CABLE COAXIAL RG6 18AWG 500'

Search across all available documentation for this part.

Active

Prysmian Group

CABLE COAXIAL RG6 18AWG 500'

Technical Specifications

Parameters and characteristics for this part

Specification	C5822.18.01

Cable Group	RG-6
Cable Type	Coaxial
Conductor Material	Steel, Copper Coated
Conductor Strand	Solid
Dielectric Diameter [diameter]	0.18 in
Dielectric Diameter [diameter]	4.57 mm
Dielectric Material	Solid Polyethylene (PE)
Impedance	75 Ohms
Jacket (Insulation) Diameter [diameter]	0.267 in
Jacket (Insulation) Diameter [diameter]	6.78 mm
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket Color	Black
Length	152.4 m
Length	6000 in
Shield Coverage	60%, 100%
Shield Material	Flexfoil®, Aluminum
Shield Type	Foil, Braid
Usage	LAN
VoP, Velocity of Propagation	85
Wire Gauge	18 AWG

Part	Dielectric Material	Impedance	Jacket Color	Shield Type	Conductor Material	Cable Type	Length	Length	VoP, Velocity of Propagation	Conductor Strand	Cable Group	Usage	Jacket (Insulation) Material	Dielectric Diameter [diameter]	Dielectric Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Shield Material	Wire Gauge	Shield Coverage
Prysmian Group C5822.18.01	Solid Polyethylene (PE)	75 Ohms	Black	Braid Foil	Copper Coated Steel	Coaxial	152.4 m	6000 in	85	Solid	RG-6	LAN	Poly-Vinyl Chloride (PVC)	0.18 in	4.57 mm	0.267 in	6.78 mm	Flexfoil® Aluminum	18 AWG	100% 60%

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Coaxial Cable 18 AWG (0.82mm²) RG-6 500.0' (152.40m) 75 Ohms
