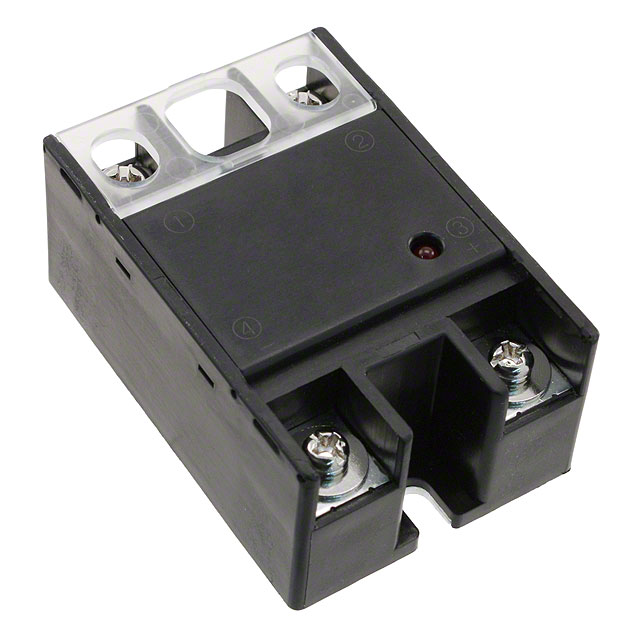

AQAD171DL
ActivePanasonic Electric Works
SSR RELAY SPST-NO 10A 0-600V
Deep-Dive with AI
Search across all available documentation for this part.
AQAD171DL
ActivePanasonic Electric Works
SSR RELAY SPST-NO 10A 0-600V
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | AQAD171DL |
|---|---|
| Approval Agency | cURus, VDE |
| Load Current | 10 A |
| Mounting Type | Chassis Mount |
| On-State Resistance (Max) [Max] | 200 mOhms |
| Operating Temperature [Max] | 80 C |
| Operating Temperature [Min] | -20 C |
| Output Type | DC |
| Package / Case | Hockey Puck |
| Termination Style | Screw Terminal |
| Voltage - Input [Max] | 32 V |
| Voltage - Input [Min] | 4 V |
| Voltage - Load [Max] | 600 V |
| Voltage - Load [Min] | 0 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 64.90 | |
| 10 | $ 61.48 | |||
| 26 | $ 58.07 | |||
| 50 | $ 54.65 | |||
| 100 | $ 51.24 | |||
Description
General part information
AQAD17 Series
Solid State SPST-NO (1 Form A) Hockey Puck
