6396BG

Active

Boyd Laconia, LLC

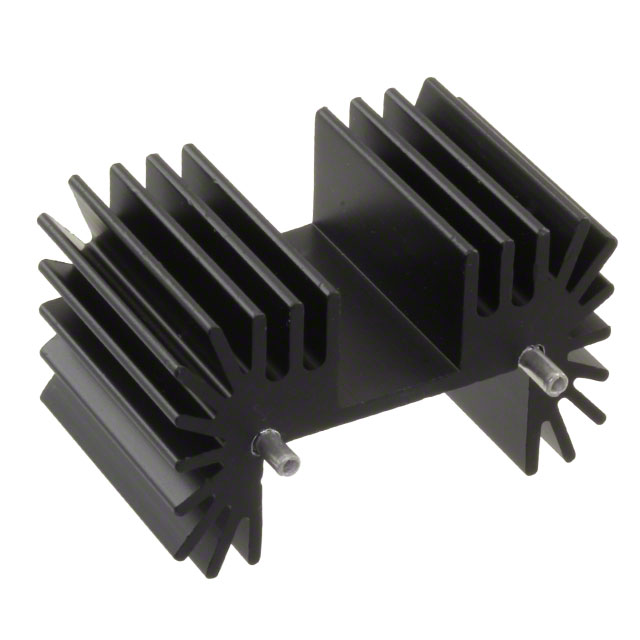

HEATSINK TO-218/TO-220 PIN

Search across all available documentation for this part.

Active

Boyd Laconia, LLC

HEATSINK TO-218/TO-220 PIN

Technical Specifications

Parameters and characteristics for this part

Specification	6396BG

Attachment Method	PC Pin, Bolt On
Fin Height	1 in
Fin Height	25.4 mm
Length [x]	1 in
Length [x]	25.4 mm
Material	Aluminum
Material Finish	Black Anodized
Package Cooled	TO-218, TO-220
Power Dissipation @ Temperature Rise	30 °C, 4 W
Shape	Rectangular, Fins
Thermal Resistance @ Forced Air Flow	1.5 °C/W
Thermal Resistance @ Natural	5.6 °C/W
Type	Board Level, Vertical
Width [x]	41.91 mm
Width [x]	1.65 in

Part	Width [x]	Width [x]	Power Dissipation @ Temperature Rise	Fin Height	Fin Height	Thermal Resistance @ Natural	Length [x]	Length [x]	Shape	Type	Package Cooled	Material Finish	Thermal Resistance @ Forced Air Flow	Attachment Method	Material
Boyd Laconia, LLC 6396BG	41.91 mm	1.65 in	4 W 30 °C	1 in	25.4 mm	5.6 °C/W	1 in	25.4 mm	Rectangular Fins	Board Level Vertical	TO-218 TO-220	Black Anodized	1.5 °C/W	Bolt On PC Pin	Aluminum

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Heat Sink TO-220, TO-218 Aluminum 4.0W @ 30°C Board Level, Vertical
