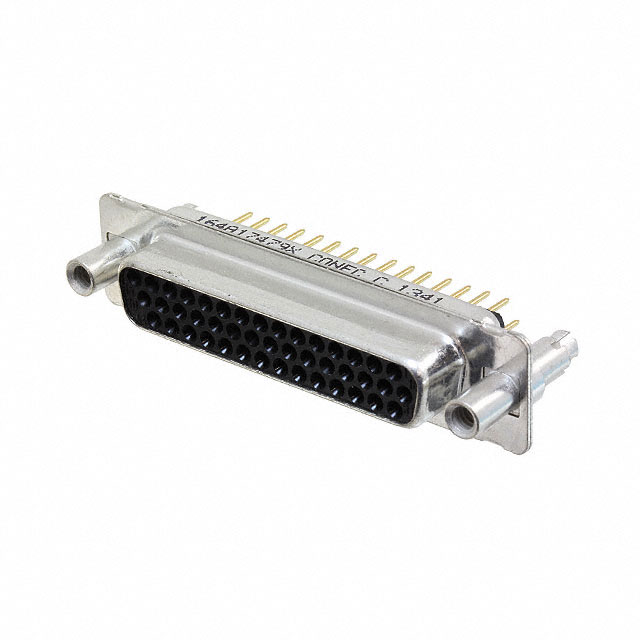

164A17479X

Active

Amphenol CONEC

CONN D-SUB HD RCPT 44P VERT SLDR

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

164A17479X

Active

Amphenol CONEC

CONN D-SUB HD RCPT 44P VERT SLDR

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	164A17479X

Color	Black
Connector Style	High Density, D-Sub
Connector Type	Receptacle, Female Sockets
Contact Finish	Gold
Contact Finish Thickness	Flash
Contact Material	Copper Alloy
Contact Type	Signal
Current Rating (Amps)	3 A
Dielectric Material	Polybutylene Terephthalate (PBT), Glass Filled
Flange Feature	4-40
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	44
Number of Rows	3
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Shell Size, Connector Layout [custom]	B, DB
Shell Size, Connector Layout [x]	3
Termination	Solder
Voltage Rating	60 VDC

164A174 Series

Part	Shell Size, Connector Layout [custom]	Shell Size, Connector Layout [custom]	Shell Size, Connector Layout [custom]	Connector Style	Color	Termination	Material Flammability Rating	Flange Feature	Contact Type	Connector Type	Contact Finish	Dielectric Material	Number of Rows	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Current Rating (Amps)	Contact Material	Number of Positions	Contact Finish Thickness	Voltage Rating	Contact Finish Thickness	Contact Finish Thickness	Shell Size, Connector Layout [x]	Shell Size, Connector Layout	Shell Size, Connector Layout
Amphenol CONEC 164A17459X	DE E	1	High Density	D-Sub High Density	Black	Solder	UL94 V-0	4-40	Signal	Receptacle Female Sockets	Gold	Polybutylene Terephthalate (PBT) Glass Filled	3	Through Hole	-55 °C	125 °C	3 A	Copper Alloy	15	Flash	60 VDC
Amphenol CONEC 164A17409X	DE E	1	High Density	D-Sub High Density	Black	Solder	UL94 V-0	Board Side (M3)	Signal	Receptacle Female Sockets	Gold	Polybutylene Terephthalate (PBT) Glass Filled	3	Through Hole	-55 °C	125 °C	3 A	Copper Alloy	15		60 VDC	8 çin	0.203 çm
Amphenol CONEC 164A17499X				D-Sub High Density	Black	Solder	UL94 V-0	4-40	Signal	Receptacle Female Sockets	Gold	Polybutylene Terephthalate (PBT) Glass Filled		Through Hole	-55 °C	125 °C	3 A	Copper Alloy	78	Flash	60 VDC
Amphenol CONEC 164A17429X	B DB			D-Sub High Density	Black	Solder	UL94 V-0	Board Side (M3)	Signal	Receptacle Female Sockets	Gold	Polybutylene Terephthalate (PBT) Glass Filled	3	Through Hole	-55 °C	125 °C	3 A	Copper Alloy	44		60 VDC	8 çin	0.203 çm	3
Amphenol CONEC 164A17419X				D-Sub High Density	Black	Solder	UL94 V-0	Board Side (M3)	Signal	Receptacle Female Sockets	Gold	Polybutylene Terephthalate (PBT) Glass Filled	3	Through Hole	-55 °C	125 °C	3 A	Copper Alloy	26		60 VDC	8 çin	0.203 çm		2	(DA A) High Density
Amphenol CONEC 164A17469X				D-Sub High Density	Black	Solder	UL94 V-0	4-40	Signal	Receptacle Female Sockets	Gold	Polybutylene Terephthalate (PBT) Glass Filled	3	Through Hole	-55 °C	125 °C	3 A	Copper Alloy	26	Flash	60 VDC				2	(DA A) High Density
Amphenol CONEC 164A17479X	B DB			D-Sub High Density	Black	Solder	UL94 V-0	4-40	Signal	Receptacle Female Sockets	Gold	Polybutylene Terephthalate (PBT) Glass Filled	3	Through Hole	-55 °C	125 °C	3 A	Copper Alloy	44	Flash	60 VDC			3

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 24.93
		10	$ 21.83
		25	$ 20.88
		50	$ 20.21
		100	$ 19.54
		250	$ 18.46
		500	$ 17.92

Description

General part information

164A174 Series

44 Position D-Sub, High Density Receptacle, Female Sockets Connector
