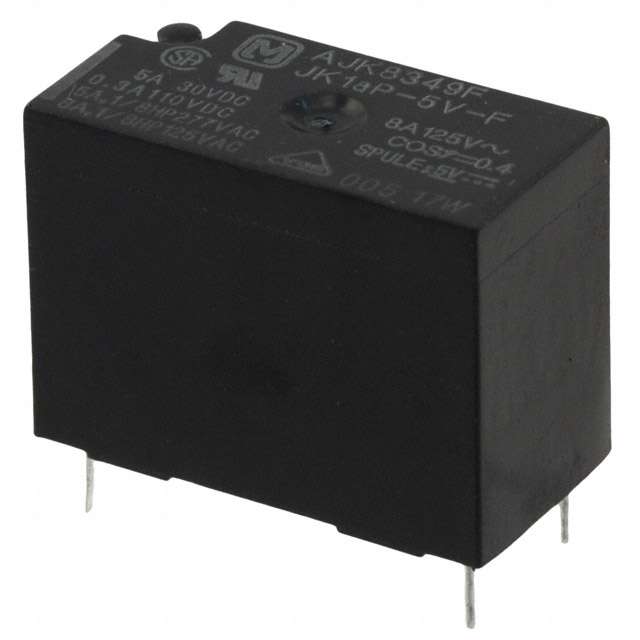

JK1A-18V - JK1AP-5V-F

JK1A-18V

Obsolete
Panasonic Electric Works

RELAY GEN PURPOSE SPST 3A 18V

Deep-Dive with AI

DocumentsHow to Read Date CodesStandards Chart+2

Technical Specifications

Parameters and characteristics for this part

SpecificationJK1A-18V
Approval AgencyTUV, VDE, CSA, UR
Coil Current11 mA
Coil Resistance1.62 kOhms
Coil TypeNon Latching
Coil Voltage18 VDC
Contact FormSPST-NO (1 Form A)
Contact MaterialSilver Alloy
Contact Rating (Current)3 A
Load - Max Switching330 W, 750 VA
Mounting TypeThrough Hole
Must Operate Voltage14.4 VDC
Must Release Voltage0.9 VDC
Operate Time4 ms
Operating Temperature [Max]70 °C
Operating Temperature [Min]-40 °C
Relay TypeGeneral Purpose
Release Time2 ms
Seal RatingSealed - Fully
Switching Voltage250 VAC, 110 VDC
Termination StylePC Pin

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$

Description

General part information

JK1A-1 Series

General Purpose Relay SPST-NO (1 Form A) 18VDC Coil Through Hole
