General part information

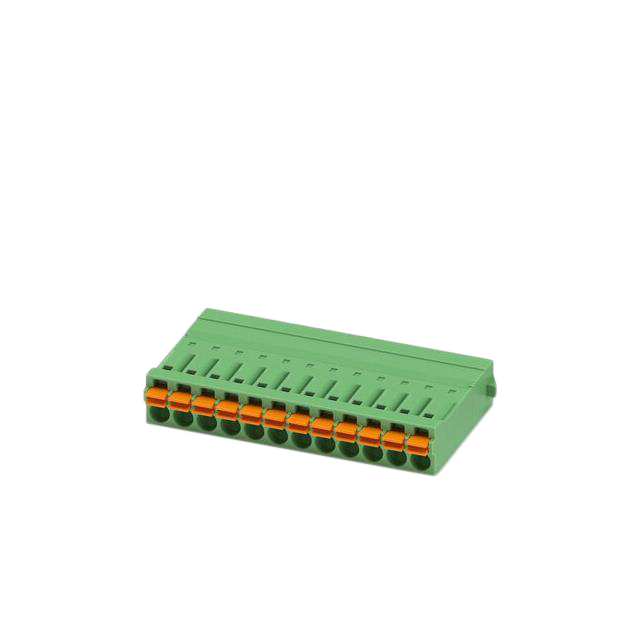

Pluggable Terminal Blocks IFMC1,5/12-ST-3,5-RN
Technical documentation and resources
Parameters and characteristics for this part
| Specification | 1844206 |
|---|---|
| Color | Green |
| Contact Mating Finish | Tin |
| Current - IEC | 8 A |
| Current - UL | 8 A |
| Features | Locking Ramp |
| Housing Material | Polyamide (PA), Nylon |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Free Hanging (In-Line) |
| Number of Levels | 1 |
| Number of Positions | 12 |
| Pitch [x] | 3.5 mm |
| Pitch [x] | 0.138 in |
| Positions Per Level | 12 |
| Termination Style | Push-In Spring, Screwless - Leg Spring |
| Voltage - IEC | 320 V |
| Voltage - UL | 150 V |
| Wire Gauge or Range - AWG [Max] | 24 AWG |
| Wire Gauge or Range - AWG [Min] | 16 AWG |
| Wire Gauge or Range - mm˛ [Max] | 1.5 mm˛ |
| Wire Gauge or Range - mm˛ [Min] | 0.14 mm˛ |
| Wire Strip Length | 10 mm |
Pluggable Terminal Blocks IFMC1,5/12-ST-3,5-RN
| Part | Pitch [x] | Pitch [x] | Positions Per Level | Mounting Type | Termination Style | Current - UL | Voltage - IEC | Number of Levels | Wire Gauge or Range - AWG [Max] | Wire Gauge or Range - AWG [Min] | Current - IEC | Features | Contact Mating Finish | Color | Wire Strip Length | Voltage - UL | Number of Positions | Housing Material | Material Flammability Rating | Wire Gauge or Range - mm˛ [Min] | Wire Gauge or Range - mm˛ [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Phoenix Contact 1844206 | 3.5 mm | 0.138 in | 12 | Free Hanging (In-Line) | Push-In Spring, Screwless - Leg Spring | 8 A | 320 V | 1 | 24 AWG | 16 AWG | 8 A | Locking Ramp | Tin | Green | 10 mm | 150 V | 12 | Polyamide (PA), Nylon | UL94 V-0 | 0.14 mm˛ | 1.5 mm˛ |
