QCM019PC2DC003
ActiveTE Connectivity Aerospace, Defense and Marine

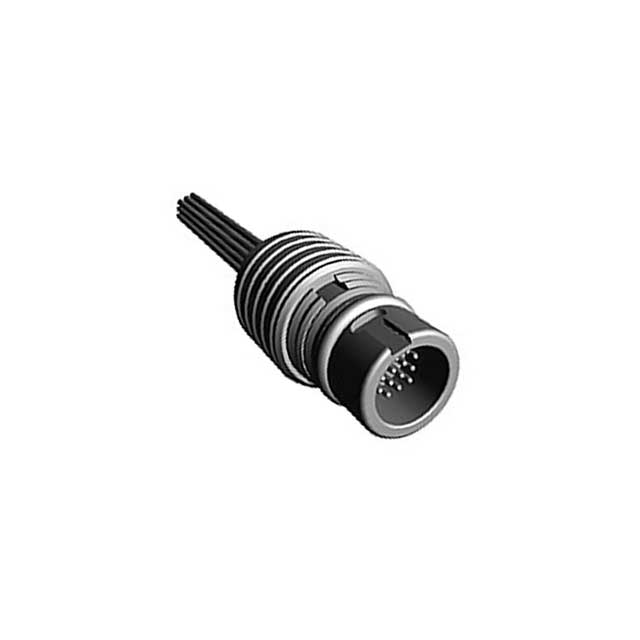

CBL CIRC 19P MALE TO WIRE 0.98'
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
QCM019PC2DC003
ActiveTE Connectivity Aerospace, Defense and Marine
CBL CIRC 19P MALE TO WIRE 0.98'
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | QCM019PC2DC003 | QCM019 Series |
|---|---|---|
| - | - | |
| 1st Connector Gender | Male Pins | Female Sockets, Male Pins |
| 1st Connector Mounting Type | Free Hanging (In-Line) | Panel Mount, Free Hanging (In-Line) |
| 1st Connector Number of Positions | 19 | 19 |
| 1st Connector Number of Positions Loaded | All | All |
| 1st Connector Type | Plug | Receptacle, Plug |
| 2nd Connector Type | Wire Leads | Wire Leads |
| Assembly Configuration | Standard | Standard |
| Cable Material | Polytetrafluoroethylene (PTFE) | Polytetrafluoroethylene (PTFE) |
| Cable Type | Individual | Individual |
| Color | Multiple | Multiple |
| Connector Type | - | Receptacle, Female Sockets |
| Contact Finish - Mating | - | Gold |
| Fastening Type | - | Push-Pull |
| Ingress Protection | - | IP67 - Dust Tight, Waterproof |
| Length | - | 1.5 - 2 ' |
| Length | - | 457.2 - 609.6 mm |
| Length | - | 1 ft |
| Length | - | 304.8 mm |
| Mounting Feature | - | Bulkhead - Rear Side Nut |
| Number of Positions | - | 19 |
| Operating Temperature | - | -55 °C |
| Operating Temperature | - | 200 °C |
| Orientation | - | Keyed |
| Primary Material | - | Metal |
| Shell Finish | - | Electroless Nickel |
| Shell Material | - | Aluminum |
| Shielding | Unshielded | Unshielded |
| Termination | - | Crimp |
| Usage | Industrial Environments | Industrial Environments |
QCM019 Series
CBL CIRC 19POS FEM TO WIRE 0.5'
| Part | 1st Connector Mounting Type | 1st Connector Type | 1st Connector Number of Positions Loaded | Assembly Configuration | 2nd Connector Type | Cable Type | 1st Connector Number of Positions | Color | Usage | 1st Connector Gender | Shielding | Cable Material | Length [x] | Length [x] | Length | Length | Number of Positions | Operating Temperature [Min] | Operating Temperature [Max] | Shell Finish | Orientation | Contact Finish - Mating | Ingress Protection | Fastening Type | Primary Material | Connector Type | Termination | Mounting Feature | Shell Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity Aerospace, Defense and Marine QCM019SC2DC006F | Panel Mount | Receptacle | All | Standard | Wire Leads | Individual | 19 | Multiple | Industrial Environments | Female Sockets | Unshielded | Polytetrafluoroethylene (PTFE) | |||||||||||||||||
TE Connectivity Aerospace, Defense and Marine QCM019SC2DM052PB | |||||||||||||||||||||||||||||
TE Connectivity Aerospace, Defense and Marine QCM019PC2DC018B | |||||||||||||||||||||||||||||
TE Connectivity Aerospace, Defense and Marine QCM019SC2DC006P | Panel Mount | Receptacle | All | Standard | Wire Leads | Individual | 19 | Multiple | Industrial Environments | Female Sockets | Unshielded | Polytetrafluoroethylene (PTFE) | |||||||||||||||||
TE Connectivity Aerospace, Defense and Marine QCM019PC2DC024B | Free Hanging (In-Line) | Plug | All | Standard | Wire Leads | Individual | 19 | Multiple | Industrial Environments | Male Pins | Unshielded | Polytetrafluoroethylene (PTFE) | 2 ' | 609.6 mm | |||||||||||||||
TE Connectivity Aerospace, Defense and Marine QCM019PC0DC012 | Free Hanging (In-Line) | Plug | All | Standard | Wire Leads | Individual | 19 | Multiple | Industrial Environments | Male Pins | Unshielded | Polytetrafluoroethylene (PTFE) | 1 ft | 304.8 mm | |||||||||||||||
TE Connectivity Aerospace, Defense and Marine QCM01912690M5P | |||||||||||||||||||||||||||||
TE Connectivity Aerospace, Defense and Marine QCM019PC2DC006 | Free Hanging (In-Line) | Plug | All | Standard | Wire Leads | Individual | 19 | Multiple | Industrial Environments | Male Pins | Unshielded | Polytetrafluoroethylene (PTFE) | |||||||||||||||||
TE Connectivity Aerospace, Defense and Marine QCM019SC2DC180F | |||||||||||||||||||||||||||||
TE Connectivity Aerospace, Defense and Marine QCM019SC2DC003F | 19 | -55 °C | 200 °C | Electroless Nickel | Keyed | Gold | IP67 - Dust Tight, Waterproof | Push-Pull | Metal | Receptacle, Female Sockets | Crimp | Bulkhead - Rear Side Nut | Aluminum |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 25 | $ 246.63 | |
Description
General part information
QCM019 Series
Circular Cable Assembly Unshielded 0.98' (300.00mm)
