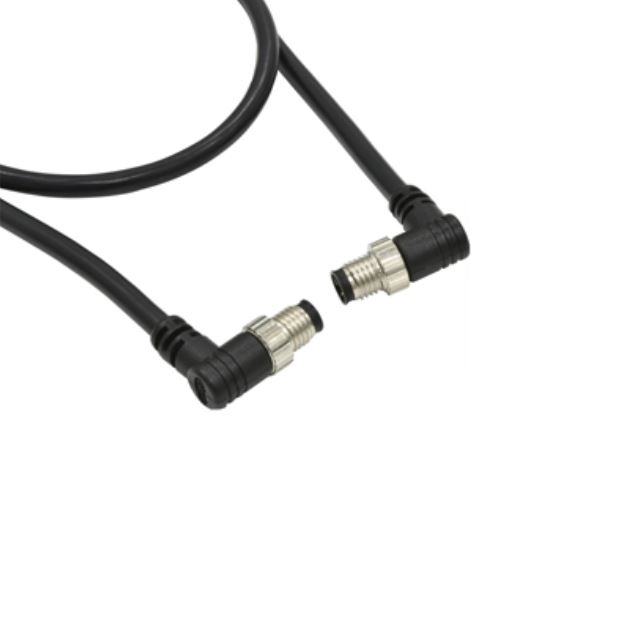

M12A05FR-12AFR-SBA05

Active

Amphenol LTW

CIR CBL 5POS PLUG RA TO RA 1.64'

Search across all available documentation for this part.

Active

Amphenol LTW

CIR CBL 5POS PLUG RA TO RA 1.64'

Technical Specifications

Parameters and characteristics for this part

Specification	M12A05FR-12AFR-SBA05

1st Connector Gender	Female Sockets
1st Connector Mounting Type	Free Hanging (In-Line)
1st Connector Number of Positions	5
1st Connector Number of Positions Loaded	All
1st Connector Orientation	A
1st Connector Shell Size - Insert	M12
1st Connector Type	Plug, Right Angle
2nd Connector Gender	Female Sockets
2nd Connector Mounting Type	Free Hanging (In-Line)
2nd Connector Number of Positions	5
2nd Connector Number of Positions Loaded	All
2nd Connector Shell Size - Insert	M12
2nd Connector Type	Plug, Right Angle
Assembly Configuration	Standard
Cable Material	Polyurethane (PUR)
Cable Type	Round
Color	Black
Ingress Protection	IP68, IP69K
Length [x]	1.64 ft
Length [x]	500 mm
Shielding	Unshielded
Usage	Industrial Environments

Part	2nd Connector Number of Positions	2nd Connector Number of Positions Loaded	Cable Type	1st Connector Number of Positions Loaded	Ingress Protection	2nd Connector Shell Size - Insert	1st Connector Gender	Length [x]	Length [x]	2nd Connector Mounting Type	Color	Cable Material	1st Connector Type	1st Connector Orientation	Shielding	2nd Connector Type	1st Connector Mounting Type	Assembly Configuration	1st Connector Shell Size - Insert	2nd Connector Gender	Usage	1st Connector Number of Positions
Amphenol LTW M12A05FR-12AFR-SD001	5	All	Round	All	IP68 IP69K	M12	Female Sockets	1 m	3.28 ft	Free Hanging (In-Line)	Black	Polyvinyl Chloride (PVC)	Plug Right Angle	A	Unshielded	Plug Right Angle	Free Hanging (In-Line)	Standard	M12	Female Sockets	Industrial Environments	5
Amphenol LTW M12A05FR-12AFR-SDA05	5	All	Round	All	IP68 IP69K	M12	Female Sockets	500 mm	1.64 ft	Free Hanging (In-Line)	Black	Polyvinyl Chloride (PVC)	Plug Right Angle	A	Unshielded	Plug Right Angle	Free Hanging (In-Line)	Standard	M12	Female Sockets	Industrial Environments	5
Amphenol LTW M12A05FR-12AFR-SBA05	5	All	Round	All	IP68 IP69K	M12	Female Sockets	500 mm	1.64 ft	Free Hanging (In-Line)	Black	Polyurethane (PUR)	Plug Right Angle	A	Unshielded	Plug Right Angle	Free Hanging (In-Line)	Standard	M12	Female Sockets	Industrial Environments	5

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Circular Cable Assembly Unshielded 1.64' (500.00mm)
