6-102692-5

Active

TE Connectivity AMP Connectors

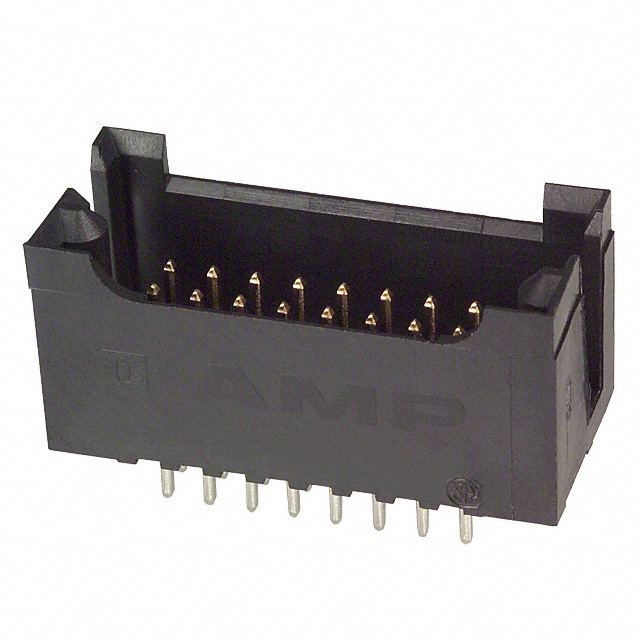

CONN HEADER VERT 16POS 2.54MM

Deep-Dive with AI

Search across all available documentation for this part.

6-102692-5

Active

TE Connectivity AMP Connectors

CONN HEADER VERT 16POS 2.54MM

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	6-102692-5	102692 Series

Connector Type	Header	Header
Contact Finish - Mating	Gold	Gold
Contact Finish - Post	Tin	Tin, Tin-Lead
Contact Finish Thickness - Mating	30 Áin	30 Áin
Contact Finish Thickness - Mating	0.76 Ám	0.76 Ám
Contact Finish Thickness - Post	2.54 µm	2.54 µm
Contact Finish Thickness - Post	100 µin	100 µin
Contact Length - Post	0.18 in	0.18 in
Contact Length - Post	4.57 mm	4.57 mm
Contact Material	Copper Alloy	Copper Alloy
Contact Shape	Square	Square
Contact Type	Male Pin	Male Pin
Current Rating (Amps)	2 A	2 A
Fastening Type	Push-Pull	Push-Pull
Insulation Color	Black	Black
Insulation Height	0.55 in	0.55 in
Insulation Height	13.97 mm	13.97 mm
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Through Hole	Through Hole
Number of Positions	16	16
Number of Positions	-	12 - 100
Number of Positions Loaded	All	All
Number of Rows	2	2
Operating Temperature [Max]	105 ░C	105 ░C
Operating Temperature [Min]	-65 ░C	-65 ░C
Pitch - Mating	0.1 in	0.1 in
Pitch - Mating	2.54 mm	2.54 mm
Row Spacing - Mating [x]	2.54 mm	2.54 mm
Row Spacing - Mating [x]	0.1 in	0.1 in
Shrouding	Shrouded - 4 Wall	Shrouded - 4 Wall
Style	Board to Board, Cable	Board to Board, Cable
Termination	Solder	Solder
Voltage Rating	250 VAC	250 VAC

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1	$ 4.51
		68	$ 3.95
		136	$ 3.57
		544	$ 3.28
		1020	$ 2.93

102692 Series

CONN HEADER VERT 50POS 2.54MM

Part	Current Rating (Amps)	Fastening Type	Termination	Contact Finish - Post	Pitch - Mating	Pitch - Mating	Number of Positions Loaded	Contact Type	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Insulation Height	Insulation Height	Mounting Type	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Length - Post	Contact Length - Post	Operating Temperature [Min]	Operating Temperature [Max]	Contact Material	Insulation Color	Shrouding	Material Flammability Rating	Number of Positions	Style	Number of Rows	Connector Type	Contact Finish - Mating	Voltage Rating	Contact Shape	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Number of Positions
TE Connectivity AMP Connectors 5-102692-4	2 A	Push-Pull	Solder	Tin	0.1 in	2.54 mm	All	Male Pin	30 Áin	0.76 Ám	0.55 in	13.97 mm	Through Hole	2.54 µm	100 µin	0.18 in	4.57 mm	-65 ░C	105 ░C	Copper Alloy	Black	Shrouded - 4 Wall	UL94 V-0	50	Board to Board, Cable	2	Header	Gold	250 VAC	Square	2.54 mm	0.1 in
TE Connectivity AMP Connectors 5-102692-1	2 A	Push-Pull	Solder	Tin	0.1 in	2.54 mm	All	Male Pin	30 Áin	0.76 Ám	0.55 in	13.97 mm	Through Hole	2.54 µm	100 µin	0.18 in	4.57 mm	-65 ░C	105 ░C	Copper Alloy	Black	Shrouded - 4 Wall	UL94 V-0	12	Board to Board, Cable	2	Header	Gold	250 VAC	Square	2.54 mm	0.1 in
TE Connectivity AMP Connectors 6-102692-3	2 A	Push-Pull	Solder	Tin	0.1 in	2.54 mm	All	Male Pin	30 Áin	0.76 Ám	0.55 in	13.97 mm	Through Hole	2.54 µm	100 µin	0.18 in	4.57 mm	-65 ░C	105 ░C	Copper Alloy	Black	Shrouded - 4 Wall	UL94 V-0	40	Board to Board, Cable	2	Header	Gold	250 VAC	Square	2.54 mm	0.1 in
TE Connectivity AMP Connectors 1-102692-5	2 A	Push-Pull	Solder	Tin-Lead	0.1 in	2.54 mm	All	Male Pin	30 Áin	0.76 Ám	0.55 in	13.97 mm	Through Hole	2.54 µm	100 µin	0.18 in	4.57 mm	-65 ░C	105 ░C	Copper Alloy	Black	Shrouded - 4 Wall	UL94 V-0		Board to Board, Cable	2	Header	Gold	250 VAC	Square	2.54 mm	0.1 in	16
TE Connectivity AMP Connectors 6-102692-8	2 A	Push-Pull	Solder	Tin	0.1 in	2.54 mm	All	Male Pin	30 Áin	0.76 Ám	0.55 in	13.97 mm	Through Hole	2.54 µm	100 µin	0.18 in	4.57 mm	-65 ░C	105 ░C	Copper Alloy	Black	Shrouded - 4 Wall	UL94 V-0	86	Board to Board, Cable	2	Header	Gold	250 VAC	Square	2.54 mm	0.1 in
TE Connectivity AMP Connectors 1-102692-7	2 A	Push-Pull	Solder	Tin-Lead	0.1 in	2.54 mm	All	Male Pin	30 Áin	0.76 Ám	0.55 in	13.97 mm	Through Hole	2.54 µm	100 µin	0.18 in	4.57 mm	-65 ░C	105 ░C	Copper Alloy	Black	Shrouded - 4 Wall	UL94 V-0	30	Board to Board, Cable	2	Header	Gold	250 VAC	Square	2.54 mm	0.1 in
TE Connectivity AMP Connectors 5-102692-8	2 A	Push-Pull	Solder	Tin	0.1 in	2.54 mm	All	Male Pin	30 Áin	0.76 Ám	0.55 in	13.97 mm	Through Hole	2.54 µm	100 µin	0.18 in	4.57 mm	-65 ░C	105 ░C	Copper Alloy	Black	Shrouded - 4 Wall	UL94 V-0	100	Board to Board, Cable	2	Header	Gold	250 VAC	Square	2.54 mm	0.1 in
TE Connectivity AMP Connectors 102692-3	2 A	Push-Pull	Solder	Tin-Lead	0.1 in	2.54 mm	All	Male Pin	30 Áin	0.76 Ám	0.55 in	13.97 mm	Through Hole	2.54 µm	100 µin	0.18 in	4.57 mm	-65 ░C	105 ░C	Copper Alloy	Black	Shrouded - 4 Wall	UL94 V-0	36	Board to Board, Cable	2	Header	Gold	250 VAC	Square	2.54 mm	0.1 in
TE Connectivity AMP Connectors 6-102692-6	2 A	Push-Pull	Solder	Tin	0.1 in	2.54 mm	All	Male Pin	30 Áin	0.76 Ám	0.55 in	13.97 mm	Through Hole	2.54 µm	100 µin	0.18 in	4.57 mm	-65 ░C	105 ░C	Copper Alloy	Black	Shrouded - 4 Wall	UL94 V-0	20	Board to Board, Cable	2	Header	Gold	250 VAC	Square	2.54 mm	0.1 in
TE Connectivity AMP Connectors 6-102692-5	2 A	Push-Pull	Solder	Tin	0.1 in	2.54 mm	All	Male Pin	30 Áin	0.76 Ám	0.55 in	13.97 mm	Through Hole	2.54 µm	100 µin	0.18 in	4.57 mm	-65 ░C	105 ░C	Copper Alloy	Black	Shrouded - 4 Wall	UL94 V-0		Board to Board, Cable	2	Header	Gold	250 VAC	Square	2.54 mm	0.1 in	16
TE Connectivity AMP Connectors 102692-5	2 A	Push-Pull	Solder	Tin-Lead	0.1 in	2.54 mm	All	Male Pin	30 Áin	0.76 Ám	0.55 in	13.97 mm	Through Hole	2.54 µm	100 µin	0.18 in	4.57 mm	-65 ░C	105 ░C	Copper Alloy	Black	Shrouded - 4 Wall	UL94 V-0	60	Board to Board, Cable	2	Header	Gold	250 VAC	Square	2.54 mm	0.1 in
TE Connectivity AMP Connectors 6-102692-7	2 A	Push-Pull	Solder	Tin	0.1 in	2.54 mm	All	Male Pin	30 Áin	0.76 Ám	0.55 in	13.97 mm	Through Hole	2.54 µm	100 µin	0.18 in	4.57 mm	-65 ░C	105 ░C	Copper Alloy	Black	Shrouded - 4 Wall	UL94 V-0	30	Board to Board, Cable	2	Header	Gold	250 VAC	Square	2.54 mm	0.1 in
TE Connectivity AMP Connectors 1-102692-6	2 A	Push-Pull	Solder	Tin-Lead	0.1 in	2.54 mm	All	Male Pin	30 Áin	0.76 Ám	0.55 in	13.97 mm	Through Hole	2.54 µm	100 µin	0.18 in	4.57 mm	-65 ░C	105 ░C	Copper Alloy	Black	Shrouded - 4 Wall	UL94 V-0	20	Board to Board, Cable	2	Header	Gold	250 VAC	Square	2.54 mm	0.1 in

Description

General part information

102692 Series

Connector Header Through Hole 16 position 0.100" (2.54mm)
