7101W 003250

Active

Belden Inc.

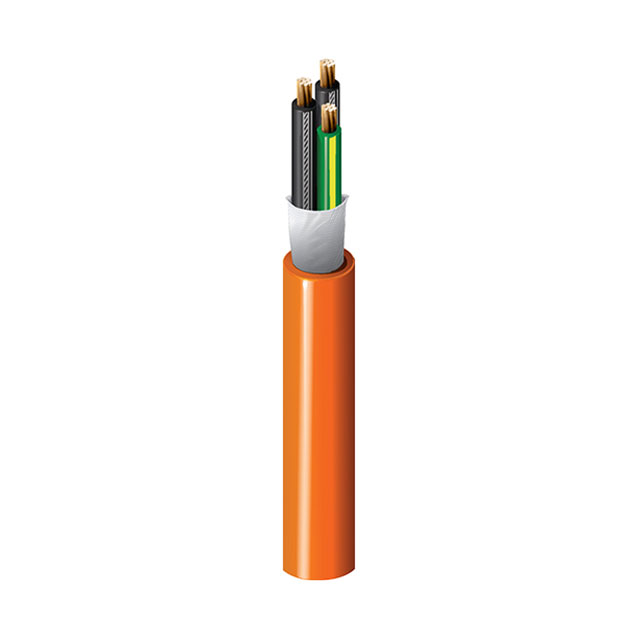

CABLE 3COND 20AWG ORANGE

Search across all available documentation for this part.

Active

Belden Inc.

CABLE 3COND 20AWG ORANGE

Technical Specifications

Parameters and characteristics for this part

Specification	7101W 003250

Cable Type	Multi-Conductor
Conductor Insulation	Poly-Vinyl Chloride (PVC)
Conductor Material	Copper, Bare
Conductor Strand [custom]	74
Conductor Strand [custom]	38 AWG
Features	Oil Resistant, UV Resistant
Jacket (Insulation) Diameter [diameter]	6.02 mm
Jacket (Insulation) Diameter [diameter]	0.237 in
Jacket (Insulation) Material	Thermoplastic Elastomer (TPE)
Jacket (Insulation) Thickness	0.94 mm
Jacket (Insulation) Thickness	0.037 in
Jacket Color	Orange
Length	3000 "
Length	76.2 m
Number of Conductors	3
Operating Temperature [Max]	90 °C
Operating Temperature [Min]	-50 °C
Ratings	UL Style 20327
Wire Gauge	20 AWG

Part	Conductor Strand [custom]	Conductor Strand [custom]	Length	Length	Features	Ratings	Conductor Material	Number of Conductors	Cable Type	Conductor Insulation	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Operating Temperature [Max]	Operating Temperature [Min]	Jacket (Insulation) Material	Wire Gauge	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Jacket Color
Belden Inc. 7101W 003250	74	38 AWG	3000 "	76.2 m	Oil Resistant UV Resistant	UL Style 20327	Copper Bare	3	Multi-Conductor	Poly-Vinyl Chloride (PVC)	6.02 mm	0.237 in	90 °C	-50 °C	Thermoplastic Elastomer (TPE)	20 AWG	0.94 mm	0.037 in	Orange

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	250	$ 6.87

General part information

3 Conductor Multi-Conductor Cable Orange 20 AWG 250.0' (76.2m)
