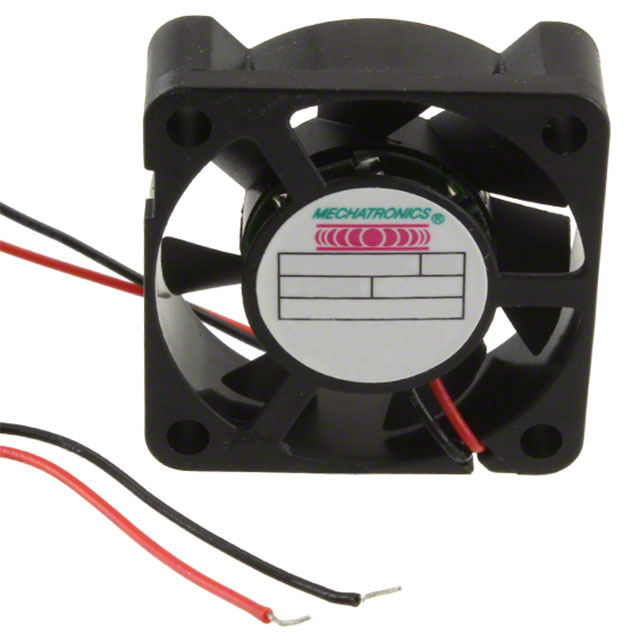

MA3010H05C-RSR

Active

Mechatronics Bearing Group

FAN AXIAL 30X10MM 5VDC WIRE

Search across all available documentation for this part.

Active

Mechatronics Bearing Group

FAN AXIAL 30X10MM 5VDC WIRE

Technical Specifications

Parameters and characteristics for this part

Specification	MA3010H05C-RSR

Air Flow	0.118 m³/min
Air Flow	4.2 CFM
Approval Agency	cUL, TUV, UL
Bearing Type	1 Ball/1 Sleeve
Current Rating (Amps)	140 mA
Fan Type	Tubeaxial
Features	Thermal Overload Protector (TOP)
Material - Blade	Polybutylene Terephthalate (PBT)
Noise	28 dB
RPM	9000 RPM
Size / Dimension [x]	30 mm
Size / Dimension [z]	30 mm
Termination	2 Wire Leads
Voltage - Rated	5 V
Voltage Range [Max]	6.5 V
Voltage Range [Min]	3 V
Weight	0.018 lb
Weight	8.16 g
Width [y]	10 mm

Part	Width [y]	Material - Blade	Voltage - Rated	RPM	Size / Dimension [x]	Size / Dimension [z]	Weight	Weight	Current Rating (Amps)	Bearing Type	Air Flow	Air Flow	Approval Agency	Noise	Fan Type	Voltage Range [Min]	Voltage Range [Max]	Features	Termination
Mechatronics Bearing Group MA3010H12C1-RSR	10 mm	Polybutylene Terephthalate (PBT)	12 VDC	9000 RPM	30 mm	30 mm	0.018 lb	8.16 g	140 mA	1 Ball/1 Sleeve	0.118 m³/min	4.2 CFM	cUL TUV UL	28 dB	Tubeaxial	7 V	13.8 VDC	Speed Sensor (Tach) Thermal Overload Protector (TOP)	3 Wire Leads
Mechatronics Bearing Group MA3010H05C-RSR	10 mm	Polybutylene Terephthalate (PBT)	5 V	9000 RPM	30 mm	30 mm	0.018 lb	8.16 g	140 mA	1 Ball/1 Sleeve	0.118 m³/min	4.2 CFM	cUL TUV UL	28 dB	Tubeaxial	3 V	6.5 V	Thermal Overload Protector (TOP)	2 Wire Leads

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Fan Tubeaxial 5VDC Square - 30mm L x 30mm H 1 Ball/1 Sleeve 4.2 CFM (0.118m³/min) 2 Wire Leads
