Q-2D02M000R.25M

Active

Amphenol Custom Cable

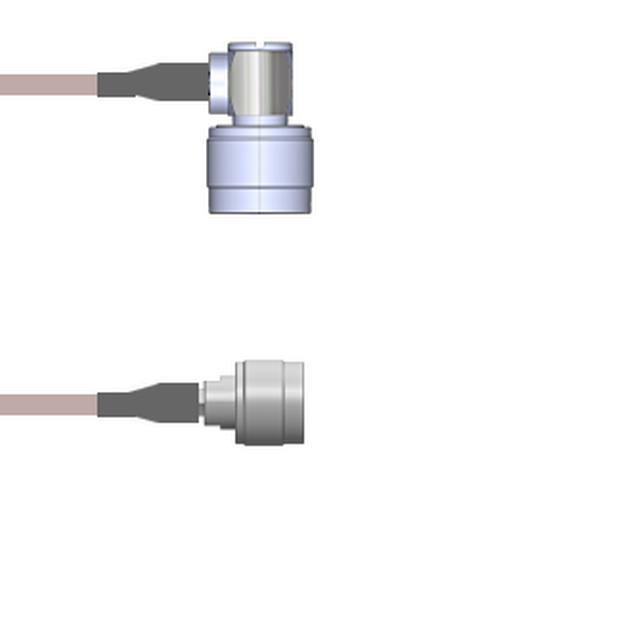

CBL ASSY NTYPE PLUG-PLUG 9.843"

Deep-Dive with AI

Search across all available documentation for this part.

Q-2D02M000R.25M

Active

Amphenol Custom Cable

CBL ASSY NTYPE PLUG-PLUG 9.843"

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	Q-2D02M000R.25M

1st Connector	N-Type Plug, Right Angle
1st Connector Mounting Type	Free Hanging (In-Line)
1st Contact Gender	Male
2nd Connector	N-Type Plug
2nd Connector Mounting Type	Free Hanging (In-Line)
2nd Contact Gender	Male
Cable Type	RG-316 DB
Color	Copper
Features	Shielded
Frequency - Max [Max]	11 GHz
Length [x]	9.843 "
Length [x]	250 mm
Overall Impedance	50 Ohms
Style	N-Type to N-Type

Q-2D02M0 Series

Part	1st Contact Gender	Features	Color	2nd Contact Gender	1st Connector Mounting Type	Length	Length	Overall Impedance	Cable Type	2nd Connector	Style	2nd Connector Mounting Type	1st Connector	Frequency - Max [Max]	Length	Length [x]	Length [x]
Amphenol Custom Cable Q-2D02M000R006i	Male	Shielded	Copper	Male	Free Hanging (In-Line)	152.4 mm	6 in	50 Ohms	RG-316 DB	N-Type Plug	N-Type to N-Type	Free Hanging (In-Line)	N-Type Plug Right Angle	11 GHz
Amphenol Custom Cable Q-2D02M000R.75M	Male	Shielded	Copper	Male	Free Hanging (In-Line)	750 mm	29.53 "	50 Ohms	RG-316 DB	N-Type Plug	N-Type to N-Type	Free Hanging (In-Line)	N-Type Plug Right Angle	11 GHz
Amphenol Custom Cable Q-2D02M000R0.5M	Male	Shielded	Copper	Male	Free Hanging (In-Line)	50 cm	19.69 "	50 Ohms	RG-316 DB	N-Type Plug	N-Type to N-Type	Free Hanging (In-Line)	N-Type Plug Right Angle	11 GHz
Amphenol Custom Cable Q-2D02M000R001M	Male	Shielded	Copper	Male	Free Hanging (In-Line)	1 m	39.4 in	50 Ohms	RG-316 DB	N-Type Plug	N-Type to N-Type	Free Hanging (In-Line)	N-Type Plug Right Angle	11 GHz	3.3 ft
Amphenol Custom Cable Q-2D02M000R012i	Male	Shielded	Copper	Male	Free Hanging (In-Line)	304.8 mm	12 "	50 Ohms	RG-316 DB	N-Type Plug	N-Type to N-Type	Free Hanging (In-Line)	N-Type Plug Right Angle	11 GHz
Amphenol Custom Cable Q-2D02M000R2.5M	Male	Shielded	Copper	Male	Free Hanging (In-Line)	2.5 m	98.4 in	50 Ohms	RG-316 DB	N-Type Plug	N-Type to N-Type	Free Hanging (In-Line)	N-Type Plug Right Angle	11 GHz	8.2 '
Amphenol Custom Cable Q-2D02M000R108i	Male	Shielded	Copper	Male	Free Hanging (In-Line)	2.7 m	108 in	50 Ohms	RG-316 DB	N-Type Plug	N-Type to N-Type	Free Hanging (In-Line)	N-Type Plug Right Angle	11 GHz	9 ft
Amphenol Custom Cable Q-2D02M000R.25M	Male	Shielded	Copper	Male	Free Hanging (In-Line)			50 Ohms	RG-316 DB	N-Type Plug	N-Type to N-Type	Free Hanging (In-Line)	N-Type Plug Right Angle	11 GHz		9.843 "	250 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 124.37
		25	$ 121.99
		50	$ 119.61
		100	$ 117.24
		250	$ 114.86

Description

General part information

Q-2D02M0 Series

Cable Assembly Coaxial N-Type to N-Type RG-316 DB 9.843" (250.00mm)

Documents

Technical documentation and resources

No documents available
