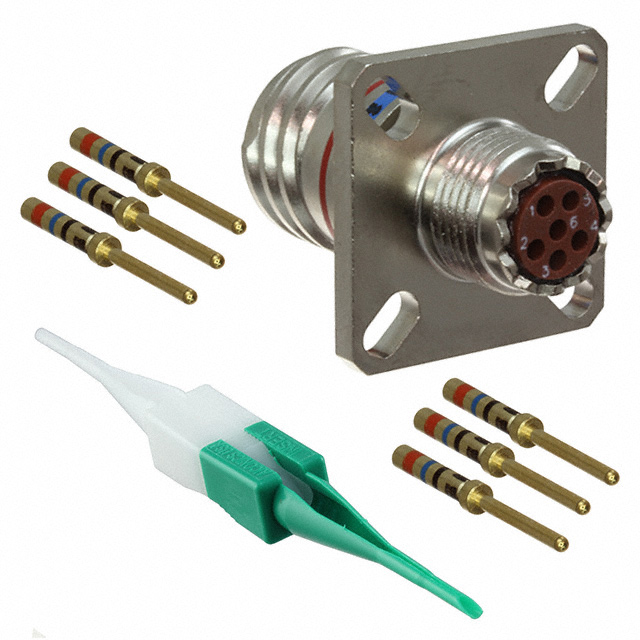

D38999/20FA35PN
ActiveTE Connectivity Raychem Cable Protection
CONN RCPT MALE 6POS GOLD CRIMP
Deep-Dive with AI
Search across all available documentation for this part.
D38999/20FA35PN
ActiveTE Connectivity Raychem Cable Protection
CONN RCPT MALE 6POS GOLD CRIMP
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | D38999/20FA35PN |
|---|---|
| Applications | Industrial, Aviation, Communication Systems, Military |
| Color | Silver |
| Connector Type | Receptacle, Male Pins |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | 1.27 µm |
| Contact Finish Thickness - Mating | 50 µin |
| Contact Material | Copper Alloy |
| Current Rating (Amps) | 5 A |
| Features | Self Locking |
| Grade | Military |
| Ingress Protection | Environment Resistant |
| Insert Material | Thermoplastic |
| Mounting Feature | Flange |
| Number of Positions | 6 |
| Operating Temperature [Max] | 200 °C |
| Operating Temperature [Min] | -65 ░C |
| Orientation | N |
| Primary Material | Metal |
| Qualification | MIL-DTL-38999 Series III |
| Shell Finish | Nickel |
| Shell Material | Aluminum |
| Shell Size - Insert [Max] | 35 |
| Shell Size - Insert [Min] | 9 |
| Shell Size, MIL | A |
| Shielding | Shielded |
| Termination | Crimp |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 139.63 | |
| 10 | $ 128.13 | |||
| 25 | $ 123.20 | |||
| 50 | $ 119.09 | |||
| Bulk | 1 | $ 108.85 | ||
| 10 | $ 99.88 | |||
| 25 | $ 96.04 | |||
| 50 | $ 92.84 | |||
| 100 | $ 91.47 | |||
Description
General part information
D38999/20FA Series
6 Position Circular Connector Receptacle, Male Pins Crimp
