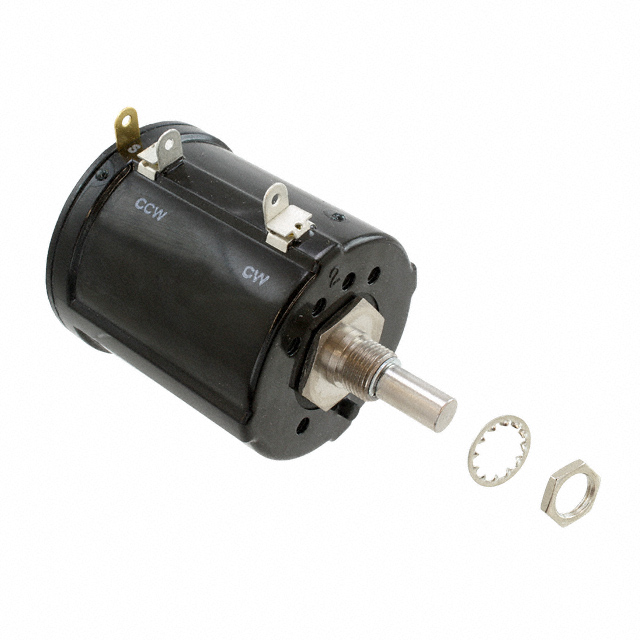

AR300KL.25

Active

TT Electronics/BI

POT 300K OHM 5W WIREWOUND LINEAR

Search across all available documentation for this part.

Active

TT Electronics/BI

POT 300K OHM 5W WIREWOUND LINEAR

Technical Specifications

Parameters and characteristics for this part

POT 300K OHM 5W WIREWOUND LINEAR

Part	Bushing Thread	Taper	Power (Watts)	Number of Gangs	Rotation	Temperature Coefficient	Resistance (Ohms)	Number of Turns	Actuator Diameter [diameter]	Actuator Diameter [diameter]	Tolerance	Resistive Material	Size - Body [diameter]	Size - Body [diameter]	Termination Style	Adjustment Type	Built in Switch	Actuator Type	Actuator Length [x]	Actuator Length [x]
TT Electronics/BI AR300KL.25	3/8-32	Linear	5 W	1	3600 °	20 ppm/°C	300k	10	6.34 mm	0.2497 in	3 %	Wirewound	1.812 in	46.03 mm	Solder Lug	User Defined		Round	20.6 mm	0.811 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

300k Ohm 1 Gang Linear Panel Mount Potentiometer 10.0 Turns Wirewound 5W Solder Lug
