104505-8
ActiveTE Connectivity AMP Connectors

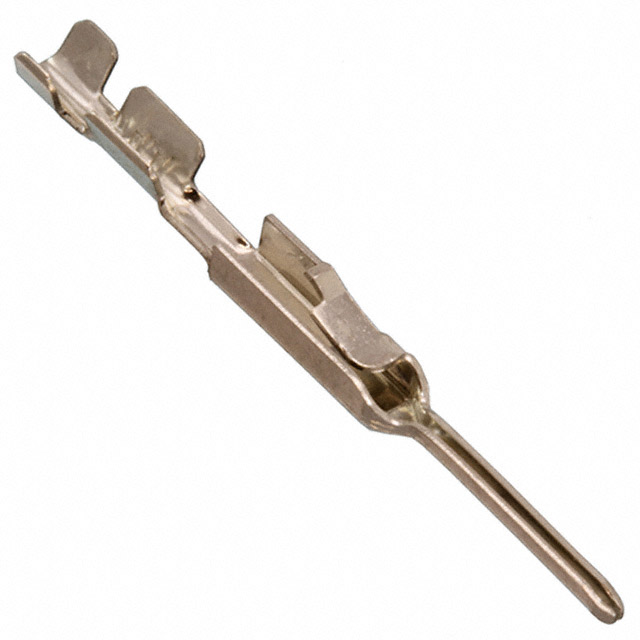

CONN PIN 22-26AWG CRIMP TIN
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
104505-8
ActiveTE Connectivity AMP Connectors
CONN PIN 22-26AWG CRIMP TIN
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 104505-8 | 104505 Series |
|---|---|---|
| Contact Finish | Tin | Gold, Tin |
| Contact Finish Thickness | 2.54 µm | 0.38 - 2.54 Ám |
| Contact Finish Thickness | 100 µin | 15 - 100 Áin |
| Contact Termination | Crimp | Crimp |
| Pin or Socket | Pin | Pin |
| Wire Gauge [Max] | 26 AWG | 26 AWG |
| Wire Gauge [Min] | 22 AWG | 22 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.22 | |
| 10 | $ 0.19 | |||
| 25 | $ 0.19 | |||
| 50 | $ 0.19 | |||
| 100 | $ 0.17 | |||
| 250 | $ 0.14 | |||
| 500 | $ 0.14 | |||
| 1000 | $ 0.13 | |||
| 2500 | $ 0.12 | |||
| Tape & Reel (TR) | 12500 | $ 0.11 | ||
| 25000 | $ 0.11 | |||
| 37500 | $ 0.11 | |||
| 62500 | $ 0.10 | |||
| 87500 | $ 0.10 | |||
104505 Series
CONN PIN 22-26AWG CRIMP GOLD
| Part | Contact Finish Thickness | Contact Finish Thickness | Pin or Socket | Contact Finish | Contact Termination | Wire Gauge [Min] | Wire Gauge [Max] |
|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 104505-6 | 0.76 Ám | 30 Áin | Pin | Gold | Crimp | 22 AWG | 26 AWG |
TE Connectivity AMP Connectors 1-104505-2 | 0.76 Ám | 30 Áin | Pin | Gold | Crimp | 22 AWG | 26 AWG |
TE Connectivity AMP Connectors 104505-4 | 0.38 µm | 15 µin | Pin | Gold | Crimp | 22 AWG | 26 AWG |
TE Connectivity AMP Connectors 5-104505-2 | 2.54 µm | 100 µin | Pin | Tin | Crimp | 22 AWG | 26 AWG |
TE Connectivity AMP Connectors 5-104505-5 | 0.38 µm | 15 µin | Pin | Gold | Crimp | 22 AWG | 26 AWG |
TE Connectivity AMP Connectors 104505-8 | 2.54 µm | 100 µin | Pin | Tin | Crimp | 22 AWG | 26 AWG |
TE Connectivity AMP Connectors 5-104505-3 | 2.54 µm | 100 µin | Pin | Tin | Crimp | 22 AWG | 26 AWG |
TE Connectivity AMP Connectors 5-104505-4 | 0.38 µm | 15 µin | Pin | Gold | Crimp | 22 AWG | 26 AWG |
TE Connectivity AMP Connectors 5-104505-6 | 0.76 Ám | 30 Áin | Pin | Gold | Crimp | 22 AWG | 26 AWG |
Description
General part information
104505 Series
Pin Contact Tin 22-26 AWG Crimp
