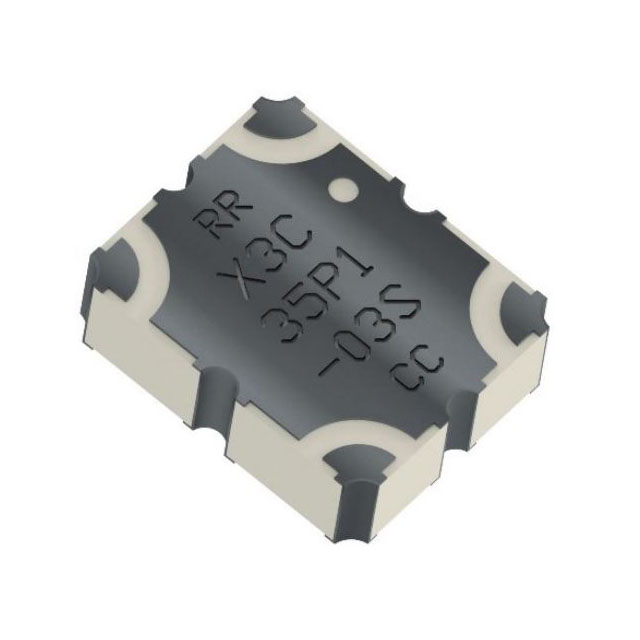

X3C35P1-03S

Active

TTM Technologies, Inc.

IC HYBRID COUPLER

Search across all available documentation for this part.

Active

TTM Technologies, Inc.

IC HYBRID COUPLER

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	X3C35P1-03S	X3C35 Series

Applications	DCS, WCDMA, LTE, PCS	DCS, WCDMA, LTE, PCS
Coupler Type	Standard	Standard
Coupling Factor	-	1.9 dB
Frequency [Max]	4.2 GHz	3.7 - 4.2 GHz
Frequency [Min]	3.1 GHz	3.1 - 3.3 GHz
Insertion Loss	0.25 dB	0.2 - 0.25 dB
Isolation	23 dB	23 dB
Package / Case	5-SMD, No Lead	5-SMD, No Lead, 4-SMD, No Lead Exposed Pad
Power - Max [Max]	85 W	25 - 85 W
Supplier Device Package	5-SMD	5-SMD

IC HYBRID COUPLER

Part	Isolation	Power - Max [Max]	Package / Case	Frequency [Min]	Frequency [Max]	Supplier Device Package	Applications	Coupler Type	Insertion Loss	Coupling Factor
TTM Technologies, Inc. X3C35P1-03S	23 dB	85 W	5-SMD, No Lead	3.1 GHz	4.2 GHz	5-SMD	DCS, LTE, PCS, WCDMA	Standard	0.25 dB
TTM Technologies, Inc. X3C35F1-02S	23 dB	25 W	4-SMD, No Lead Exposed Pad	3.3 GHz	3.7 GHz			Standard	0.2 dB	1.9 dB

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

RF Directional Coupler DCS, LTE, PCS, WCDMA 3.1GHz ~ 4.2GHz 85W 5-SMD, No Lead
