XRP7713ILB-F - XRP7713ILB-F

XRP7713ILB-F

Obsolete

MaxLinear, Inc.

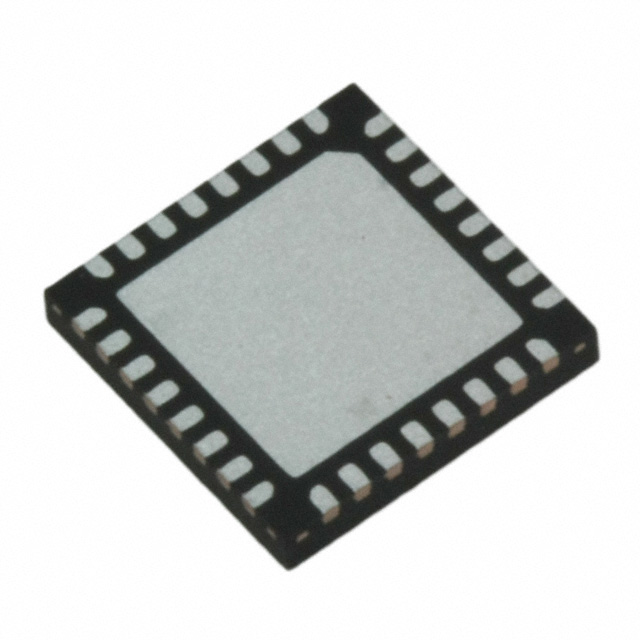

IC REG QUAD BUCK/LINEAR 32TQFN

Deep-Dive with AI

Search across all available documentation for this part.

XRP7713ILB-F - XRP7713ILB-F

XRP7713ILB-F

Obsolete

MaxLinear, Inc.

IC REG QUAD BUCK/LINEAR 32TQFN

Deep-Dive with AI

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

XRP7713 Series

PMIC - Voltage Regulators - Linear Switching 4 Output Step-Down (Buck) (3), Linear (LDO) (1) 300kHz ~ 1.5MHz 32-TQFN (5x5)

Documents

Technical documentation and resources

No documents available

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	XRP7713ILB-F	XRP7713 Series

Board Type	-	Fully Populated
Current - Output	-	5 A
Frequency - Switching	-	1.5 MHz
Frequency - Switching [Max]	1.5 MHz	1.5 MHz
Frequency - Switching [Min]	300 kHz	300 kHz
Main Purpose	-	DC/DC, Step Down
Mounting Type	Surface Mount	Surface Mount
Number of Outputs	4	4
Operating Temperature [Max]	125 °C	125 °C
Operating Temperature [Min]	-40 °C	-40 °C
Outputs and Type	-	Non-Isolated
Outputs and Type	-	3
Regulator Topology	-	Buck
Supplied Contents	-	Board(s)
Supplier Device Package	32-TQFN (5x5)	32-TQFN (5x5)
Topology	Linear (LDO) (1), Step-Down (Buck) (3)	Linear (LDO) (1), Step-Down (Buck) (3)
Utilized IC / Part	-	XRP7713
Voltage - Input	-	25 V
Voltage - Input	-	4.75 V
Voltage - Output	-	0.9 V
Voltage - Output	-	5.1 V
Voltage - Supply [Max]	25 V	25 V
Voltage - Supply [Min]	4.75 V	4.75 V
Voltage/Current - Output 1 [Max]	5.1 V	5.1 V
Voltage/Current - Output 1 [Min]	0.9 V	0.9 V
Voltage/Current - Output 2 [Max]	5.1 V	5.1 V
Voltage/Current - Output 2 [Min]	0.9 V	0.9 V
Voltage/Current - Output 3 [Max]	5.1 V	5.1 V
Voltage/Current - Output 3 [Min]	0.9 V	0.9 V
w/LED Driver	False	False
w/Sequencer	True	True
w/Supervisor	False	False

XRP7713 Series

IC REG QUAD BUCK/LINEAR 32TQFN

Part	Voltage/Current - Output 1 [Min]	Voltage/Current - Output 1 [Max]	Voltage/Current - Output 2 [Min]	Voltage/Current - Output 2 [Max]	Number of Outputs	Supplier Device Package	Frequency - Switching [Max]	Frequency - Switching [Min]	w/Supervisor	Voltage - Supply [Max]	Voltage - Supply [Min]	Mounting Type	Voltage/Current - Output 3 [Max]	Voltage/Current - Output 3 [Min]	Operating Temperature [Max]	Operating Temperature [Min]	w/LED Driver	w/Sequencer	Topology	Outputs and Type	Outputs and Type	Regulator Topology	Board Type	Current - Output	Voltage - Input [Max]	Voltage - Input [Min]	Voltage - Output [Min]	Voltage - Output [Max]	Main Purpose	Frequency - Switching	Utilized IC / Part	Supplied Contents
MaxLinear, Inc. XRP7713ILB-F	0.9 V	5.1 V	0.9 V	5.1 V	4	32-TQFN (5x5)	1.5 MHz	300 kHz		25 V	4.75 V	Surface Mount	5.1 V	0.9 V	125 °C	-40 °C			Linear (LDO) (1), Step-Down (Buck) (3)
MaxLinear, Inc. XRP7713EVB-DEMO-1																				Non-Isolated	3	Buck	Fully Populated	5 A	25 V	4.75 V	0.9 V	5.1 V	DC/DC, Step Down	1.5 MHz	XRP7713	Board(s)
MaxLinear, Inc. XRP7713ILBTR-F	0.9 V	5.1 V	0.9 V	5.1 V	4	32-TQFN (5x5)	1.5 MHz	300 kHz		25 V	4.75 V	Surface Mount	5.1 V	0.9 V	125 °C	-40 °C			Linear (LDO) (1), Step-Down (Buck) (3)
