1-1375870-8

Active

TE Connectivity AMP Connectors

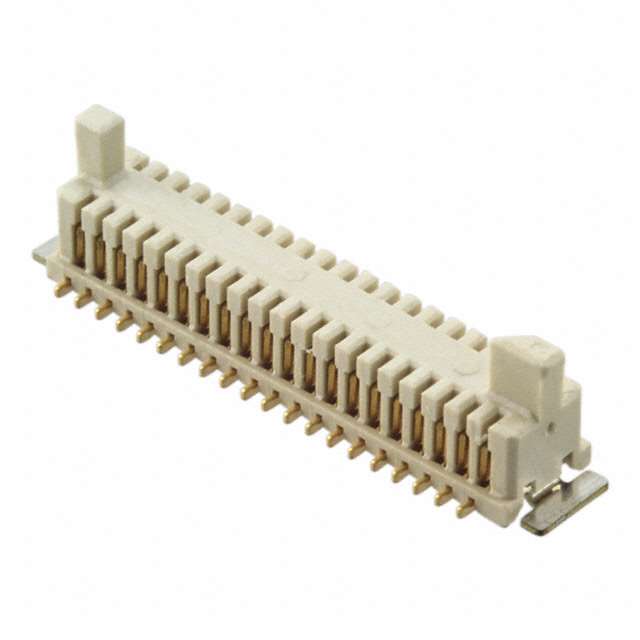

CONN RCPT 40POS 0.031 GOLD SMD

Deep-Dive with AI

Search across all available documentation for this part.

1-1375870-8

Active

TE Connectivity AMP Connectors

CONN RCPT 40POS 0.031 GOLD SMD

Deep-Dive with AI

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 22.97
	Tape & Reel (TR)	1500	$ 15.43

Description

General part information

1375870 Series

40 Position Receptacle Connector 0.031" (0.80mm) Surface Mount Gold

Documents

Technical documentation and resources

No documents available

Specification	1-1375870-8	1375870 Series

Connector Type	Receptacle	Receptacle
Contact Finish - Mating	Gold	Gold
Contact Finish - Post	Gold	Gold
Contact Finish Thickness - Mating	30 Áin	30 Áin
Contact Finish Thickness - Mating	0.76 Ám	0.76 Ám
Contact Finish Thickness - Post	0.13 Ám	0.13 Ám
Contact Finish Thickness - Post	5.11 Áin	5.11 Áin
Contact Material	Phosphor Bronze	Phosphor Bronze
Contact Type	Female Blade Socket	Female Blade Socket
Fastening Type	Friction Lock	Friction Lock
Features	Solder Retention	Solder Retention
Insulation Color	Natural	Natural
Insulation Height	0.197 in	0.197 in
Insulation Height	5 mm	5 mm
Insulation Material	Liquid Crystal Polymer (LCP)	Liquid Crystal Polymer (LCP)
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Surface Mount	Surface Mount
Number of Positions	40	6 - 40
Number of Positions	-	16
Number of Positions Loaded	All	All
Number of Rows	2	2
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-55 °C	-55 °C
Pitch - Mating	0.031 in	0.031 in
Pitch - Mating	0.8 mm	0.8 mm
Style	Board to Cable/Wire	Board to Cable/Wire
Termination	Solder	Solder
Voltage Rating	30 VAC	30 VAC

Part

Fastening Type

Pitch - Mating

Insulation Material

Contact Finish - Mating

Contact Finish Thickness - Mating

Style

Operating Temperature [Max]

Operating Temperature [Min]

Number of Positions Loaded

Features

Termination

Contact Finish - Post

Contact Finish Thickness - Post

Contact Type

Contact Material

Insulation Color

Insulation Height

Mounting Type

Number of Rows

Voltage Rating

Connector Type

Number of Positions

Material Flammability Rating

Number of Positions

TE Connectivity AMP Connectors

5-1375870-6

Friction Lock

0.031 in

0.8 mm

Liquid Crystal Polymer (LCP)

Gold

30 Áin

0.76 Ám

Board to Cable/Wire

85 °C

-55 °C

All

Solder Retention

Solder

Gold

0.13 Ám

5.11 Áin

Female Blade Socket

Phosphor Bronze

Natural

0.197 in

5 mm

Surface Mount

30 VAC

Receptacle

UL94 V-0

TE Connectivity AMP Connectors

5-1375870-4

Friction Lock

0.031 in

0.8 mm

Liquid Crystal Polymer (LCP)

Gold

30 Áin

0.76 Ám

Board to Cable/Wire

85 °C

-55 °C

All

Solder Retention

Solder

Gold

0.13 Ám

5.11 Áin

Female Blade Socket

Phosphor Bronze

Natural

0.197 in

5 mm

Surface Mount

30 VAC

Receptacle

UL94 V-0

TE Connectivity AMP Connectors

5-1375870-3

Friction Lock

0.031 in

0.8 mm

Liquid Crystal Polymer (LCP)

Gold

30 Áin

0.76 Ám

Board to Cable/Wire

85 °C

-55 °C

All

Solder Retention

Solder

Gold

0.13 Ám

5.11 Áin

Female Blade Socket

Phosphor Bronze

Natural

0.197 in

5 mm

Surface Mount

30 VAC

Receptacle

UL94 V-0

TE Connectivity AMP Connectors

1-1375870-4

Friction Lock

0.031 in

0.8 mm

Liquid Crystal Polymer (LCP)

Gold

30 Áin

0.76 Ám

Board to Cable/Wire

85 °C

-55 °C

All

Solder Retention

Solder

Gold

0.13 Ám

5.11 Áin

Female Blade Socket

Phosphor Bronze

Natural

0.197 in

5 mm

Surface Mount

30 VAC

Receptacle

UL94 V-0

TE Connectivity AMP Connectors

1375870-6

Friction Lock

0.031 in

0.8 mm

Liquid Crystal Polymer (LCP)

Gold

30 Áin

0.76 Ám

Board to Cable/Wire

85 °C

-55 °C

All

Solder Retention

Solder

Gold

0.13 Ám

5.11 Áin

Female Blade Socket

Phosphor Bronze

Natural

0.197 in

5 mm

Surface Mount

30 VAC

Receptacle

UL94 V-0

TE Connectivity AMP Connectors

6-1375870-0

Friction Lock

0.031 in

0.8 mm

Liquid Crystal Polymer (LCP)

Gold

30 Áin

0.76 Ám

Board to Cable/Wire

85 °C

-55 °C

All

Solder Retention

Solder

Gold

0.13 Ám

5.11 Áin

Female Blade Socket

Phosphor Bronze

Natural

0.197 in

5 mm

Surface Mount

30 VAC

Receptacle

UL94 V-0

TE Connectivity AMP Connectors

5-1375870-1

Friction Lock

0.031 in

0.8 mm

Liquid Crystal Polymer (LCP)

Gold

30 Áin

0.76 Ám

Board to Cable/Wire

85 °C

-55 °C

All

Solder Retention

Solder

Gold

0.13 Ám

5.11 Áin

Female Blade Socket

Phosphor Bronze

Natural

0.197 in

5 mm

Surface Mount

30 VAC

Receptacle

UL94 V-0

TE Connectivity AMP Connectors

1375870-4

Friction Lock

0.031 in

0.8 mm

Liquid Crystal Polymer (LCP)

Gold

30 Áin

0.76 Ám

Board to Cable/Wire

85 °C

-55 °C

All

Solder Retention

Solder

Gold

0.13 Ám

5.11 Áin

Female Blade Socket

Phosphor Bronze

Natural

0.197 in

5 mm

Surface Mount

30 VAC

Receptacle

UL94 V-0

TE Connectivity AMP Connectors

1-1375870-8

Friction Lock

0.031 in

0.8 mm

Liquid Crystal Polymer (LCP)

Gold

30 Áin

0.76 Ám

Board to Cable/Wire

85 °C

-55 °C

All

Solder Retention

Solder

Gold

0.13 Ám

5.11 Áin

Female Blade Socket

Phosphor Bronze

Natural

0.197 in

5 mm

Surface Mount

30 VAC

Receptacle

UL94 V-0

TE Connectivity AMP Connectors

1375870-5

Friction Lock

0.031 in

0.8 mm

Liquid Crystal Polymer (LCP)

Gold

30 Áin

0.76 Ám

Board to Cable/Wire

85 °C

-55 °C

All

Solder Retention

Solder

Gold

0.13 Ám

5.11 Áin

Female Blade Socket

Phosphor Bronze

Natural

0.197 in

5 mm

Surface Mount

30 VAC

Receptacle

UL94 V-0

Part	Fastening Type	Pitch - Mating	Pitch - Mating	Insulation Material	Contact Finish - Mating	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Style	Operating Temperature [Max]	Operating Temperature [Min]	Number of Positions Loaded	Features	Termination	Contact Finish - Post	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Type	Contact Material	Insulation Color	Insulation Height	Insulation Height	Mounting Type	Number of Rows	Voltage Rating	Connector Type	Number of Positions	Material Flammability Rating	Number of Positions
TE Connectivity AMP Connectors 5-1375870-6	Friction Lock	0.031 in	0.8 mm	Liquid Crystal Polymer (LCP)	Gold	30 Áin	0.76 Ám	Board to Cable/Wire	85 °C	-55 °C	All	Solder Retention	Solder	Gold	0.13 Ám	5.11 Áin	Female Blade Socket	Phosphor Bronze	Natural	0.197 in	5 mm	Surface Mount	2	30 VAC	Receptacle	16	UL94 V-0
TE Connectivity AMP Connectors 5-1375870-4	Friction Lock	0.031 in	0.8 mm	Liquid Crystal Polymer (LCP)	Gold	30 Áin	0.76 Ám	Board to Cable/Wire	85 °C	-55 °C	All	Solder Retention	Solder	Gold	0.13 Ám	5.11 Áin	Female Blade Socket	Phosphor Bronze	Natural	0.197 in	5 mm	Surface Mount	2	30 VAC	Receptacle		UL94 V-0	12
TE Connectivity AMP Connectors 5-1375870-3	Friction Lock	0.031 in	0.8 mm	Liquid Crystal Polymer (LCP)	Gold	30 Áin	0.76 Ám	Board to Cable/Wire	85 °C	-55 °C	All	Solder Retention	Solder	Gold	0.13 Ám	5.11 Áin	Female Blade Socket	Phosphor Bronze	Natural	0.197 in	5 mm	Surface Mount	2	30 VAC	Receptacle		UL94 V-0	10
TE Connectivity AMP Connectors 1-1375870-4	Friction Lock	0.031 in	0.8 mm	Liquid Crystal Polymer (LCP)	Gold	30 Áin	0.76 Ám	Board to Cable/Wire	85 °C	-55 °C	All	Solder Retention	Solder	Gold	0.13 Ám	5.11 Áin	Female Blade Socket	Phosphor Bronze	Natural	0.197 in	5 mm	Surface Mount	2	30 VAC	Receptacle		UL94 V-0
TE Connectivity AMP Connectors 1375870-6	Friction Lock	0.031 in	0.8 mm	Liquid Crystal Polymer (LCP)	Gold	30 Áin	0.76 Ám	Board to Cable/Wire	85 °C	-55 °C	All	Solder Retention	Solder	Gold	0.13 Ám	5.11 Áin	Female Blade Socket	Phosphor Bronze	Natural	0.197 in	5 mm	Surface Mount	2	30 VAC	Receptacle	16	UL94 V-0
TE Connectivity AMP Connectors 6-1375870-0	Friction Lock	0.031 in	0.8 mm	Liquid Crystal Polymer (LCP)	Gold	30 Áin	0.76 Ám	Board to Cable/Wire	85 °C	-55 °C	All	Solder Retention	Solder	Gold	0.13 Ám	5.11 Áin	Female Blade Socket	Phosphor Bronze	Natural	0.197 in	5 mm	Surface Mount	2	30 VAC	Receptacle		UL94 V-0	24
TE Connectivity AMP Connectors 5-1375870-1	Friction Lock	0.031 in	0.8 mm	Liquid Crystal Polymer (LCP)	Gold	30 Áin	0.76 Ám	Board to Cable/Wire	85 °C	-55 °C	All	Solder Retention	Solder	Gold	0.13 Ám	5.11 Áin	Female Blade Socket	Phosphor Bronze	Natural	0.197 in	5 mm	Surface Mount	2	30 VAC	Receptacle		UL94 V-0	6
TE Connectivity AMP Connectors 1375870-4	Friction Lock	0.031 in	0.8 mm	Liquid Crystal Polymer (LCP)	Gold	30 Áin	0.76 Ám	Board to Cable/Wire	85 °C	-55 °C	All	Solder Retention	Solder	Gold	0.13 Ám	5.11 Áin	Female Blade Socket	Phosphor Bronze	Natural	0.197 in	5 mm	Surface Mount	2	30 VAC	Receptacle		UL94 V-0	12
TE Connectivity AMP Connectors 1-1375870-8	Friction Lock	0.031 in	0.8 mm	Liquid Crystal Polymer (LCP)	Gold	30 Áin	0.76 Ám	Board to Cable/Wire	85 °C	-55 °C	All	Solder Retention	Solder	Gold	0.13 Ám	5.11 Áin	Female Blade Socket	Phosphor Bronze	Natural	0.197 in	5 mm	Surface Mount	2	30 VAC	Receptacle		UL94 V-0	40
TE Connectivity AMP Connectors 1375870-5	Friction Lock	0.031 in	0.8 mm	Liquid Crystal Polymer (LCP)	Gold	30 Áin	0.76 Ám	Board to Cable/Wire	85 °C	-55 °C	All	Solder Retention	Solder	Gold	0.13 Ám	5.11 Áin	Female Blade Socket	Phosphor Bronze	Natural	0.197 in	5 mm	Surface Mount	2	30 VAC	Receptacle		UL94 V-0	14
