580100B00000G

Active

Boyd Laconia, LLC

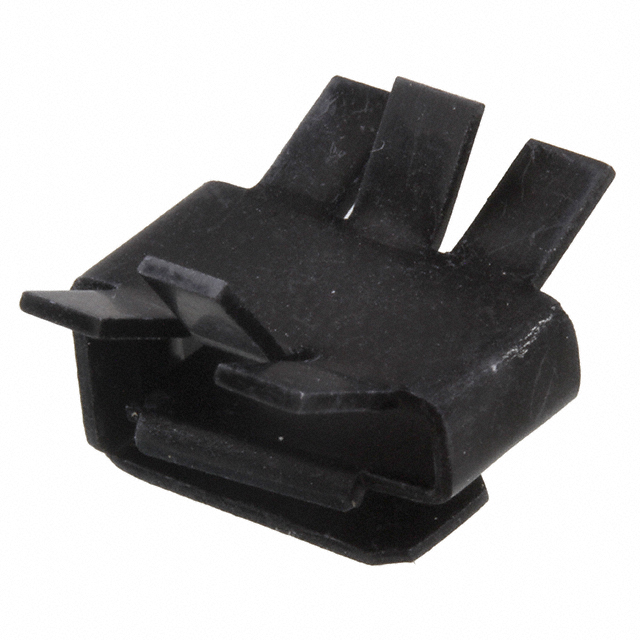

HEATSINK SLIDE-ON 8-DIP

Search across all available documentation for this part.

Active

Boyd Laconia, LLC

HEATSINK SLIDE-ON 8-DIP

Technical Specifications

Parameters and characteristics for this part

Specification	580100B00000G

Attachment Method	Press Fit
Attachment Method	Slide On
Fin Height	11.43 mm
Fin Height	0.45 in
Length	0.562 in
Length	14.27 mm
Material	Aluminum
Material Finish	Black Anodized
Package Cooled	8-DIP
Power Dissipation @ Temperature Rise	1 W
Shape	Rectangular, Fins
Thermal Resistance @ Forced Air Flow	8 °C/W
Thermal Resistance @ Natural	30 °C/W
Type	Top Mount
Width	15.24 mm
Width	0.6 in

Part	Thermal Resistance @ Forced Air Flow	Power Dissipation @ Temperature Rise	Type	Fin Height	Fin Height	Shape	Package Cooled	Attachment Method	Attachment Method	Material Finish	Material	Width	Width	Length	Length	Thermal Resistance @ Natural
Boyd Laconia, LLC 580100B00000G	8 °C/W	1 W	Top Mount	11.43 mm	0.45 in	Rectangular Fins	8-DIP	Press Fit	Slide On	Black Anodized	Aluminum	15.24 mm	0.6 in	0.562 in	14.27 mm	30 °C/W

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Heat Sink 8-DIP Aluminum 1.0W @ 30°C Top Mount
